Code 26: Quad-Driver Error
>>
Component Resistances:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Resistances:
EGR Solenoid; 5-10,000 ohms.
Canister Purge Solenoid; 20-50 ohms.
Coolant Fan Relay; 70-90 ohms.
A/C Relay; 70-90 ohms.

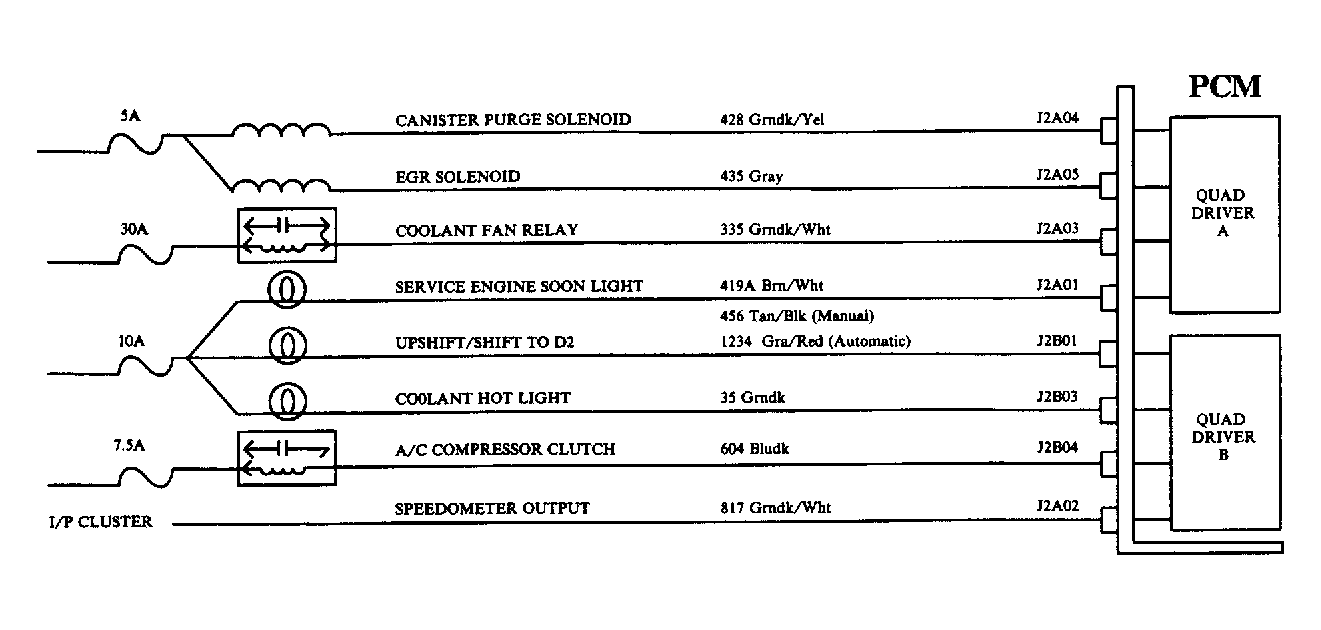

Fig 1: Code 26 Schematic Quad-Driver Error

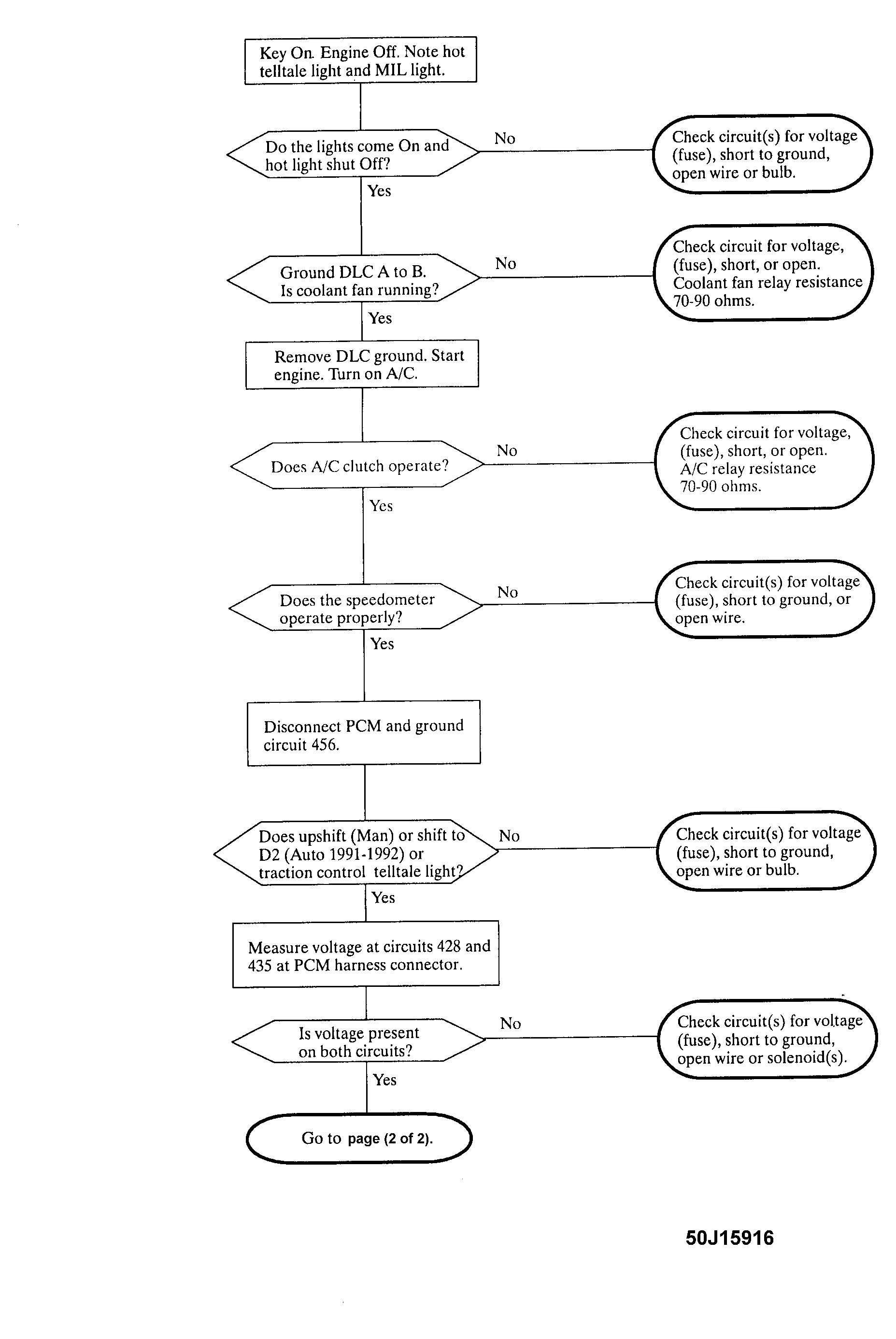

Fig 2: Code 26 Flow Chart (1 of 2) Quad-Driver Error

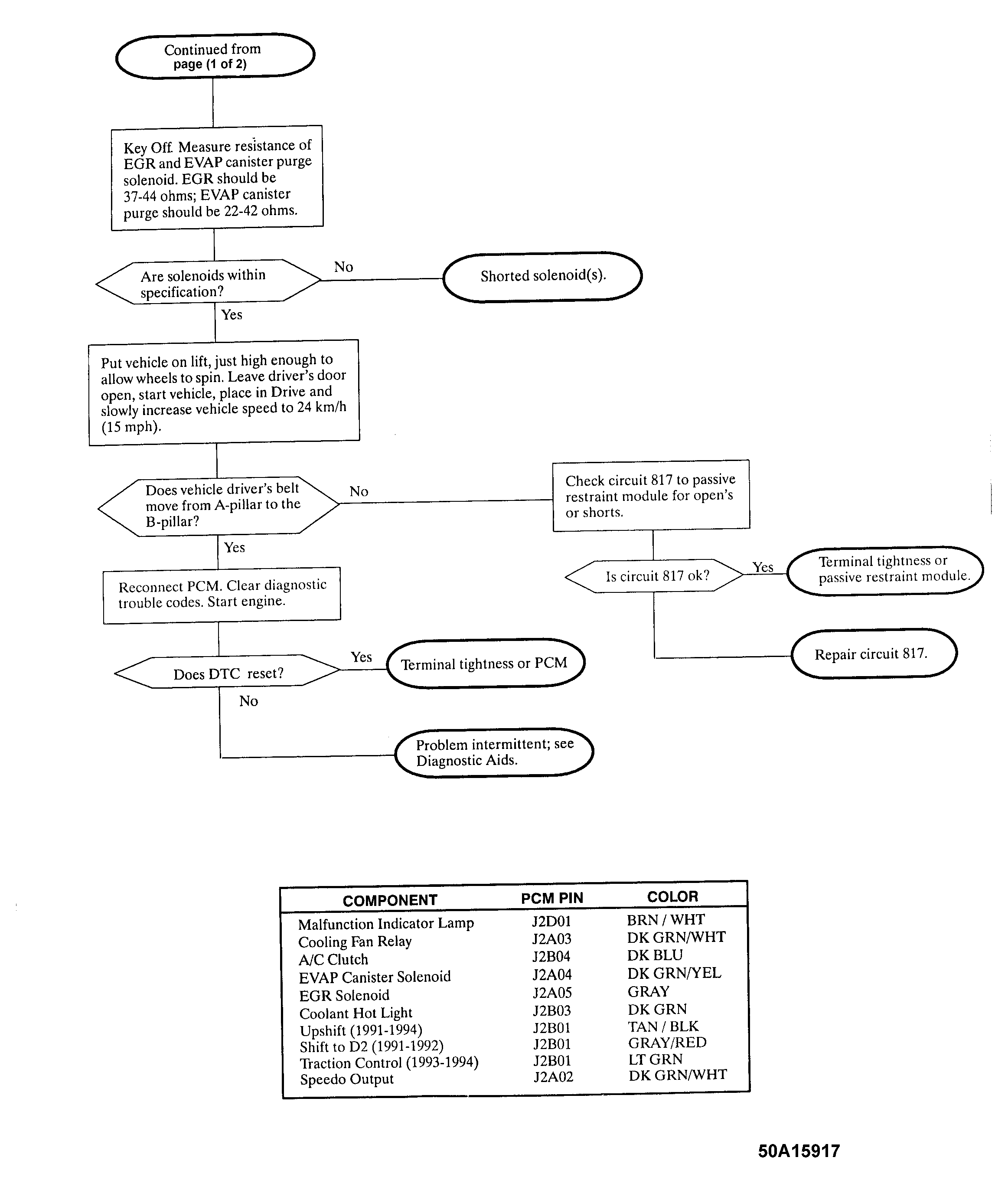

Fig 3: Code 26 Flow Chart (2 of 2) Quad-Driver Error
