Exhaust Leaks

If exhaust system has large leaks, exhaust system negative pressure pulses can cause outside air to be drawn into system and past O2 sensor. Vacuum or crankcase leaks can also cause a lean condition. Misfire Or Stall

If engine misfires or stalls (including running out of fuel) while vehicle is moving, a Code 44 may set. If Code 44 is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section.

CODE 44 PCM TERMINAL & CIRCUIT WIRING IDENTIFICATION

Application PCM Terminal Wire Color
O2 Signal J1D09 Purple
O2 Ground J1D10 Tan
Fig 1: Code 44 Schematic (Saturn) Lean Exhaust Indication
G91H07378

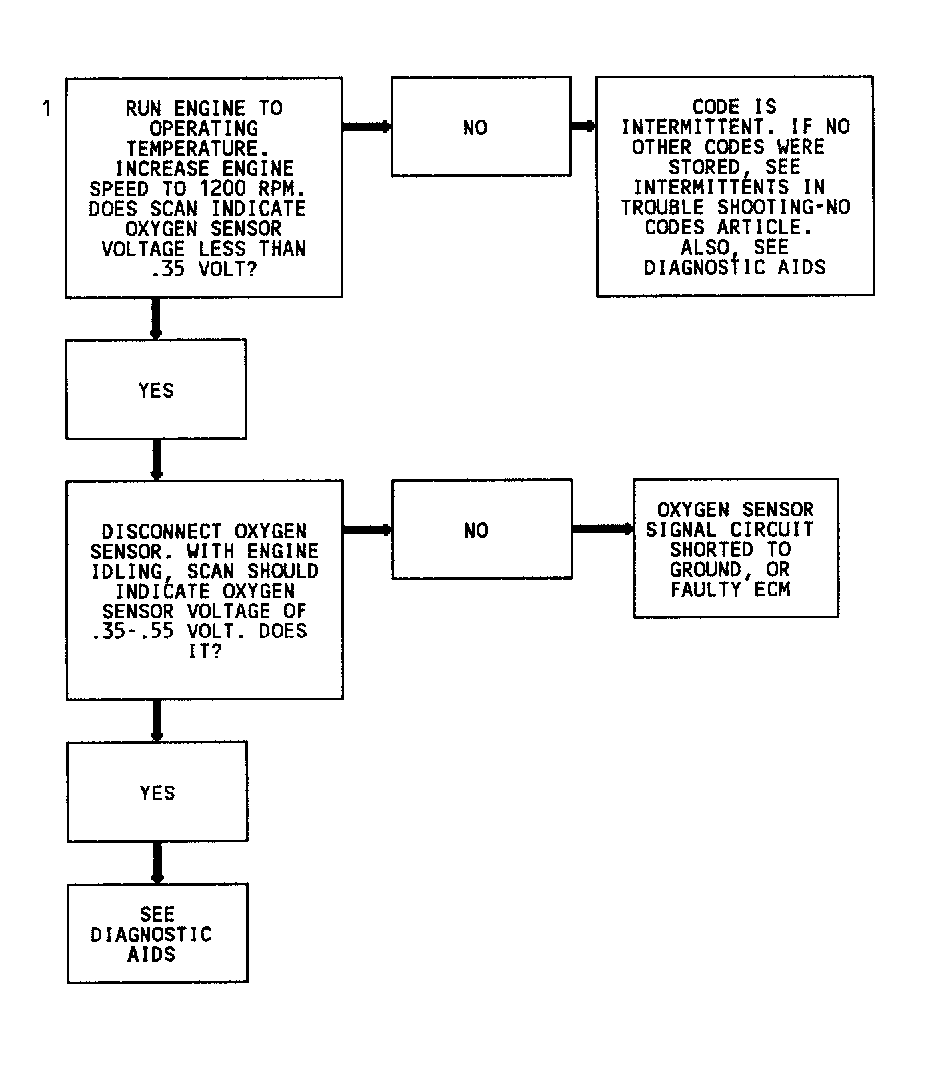

Fig 2: Code 44 Flow Chart (Saturn) Lean Exhaust Indication
G91I07350

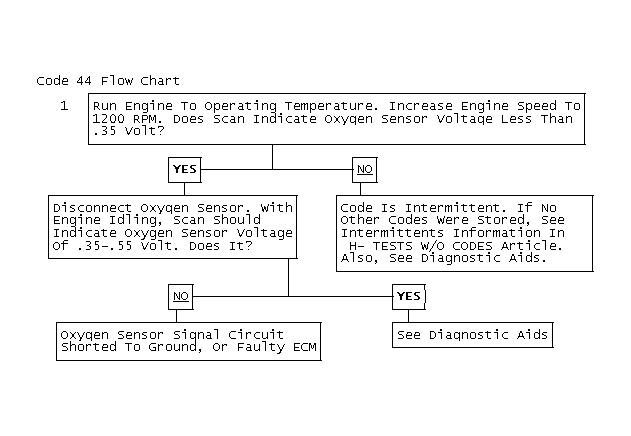

Fig 3: Code 44 Flow Chart
GB0013456
