Draining & Refilling: Notes

NOTE: If oil pan bolts are equipped with conical washers, DO NOT reuse bolts if conical washers have become reversed. See Fig 1 .

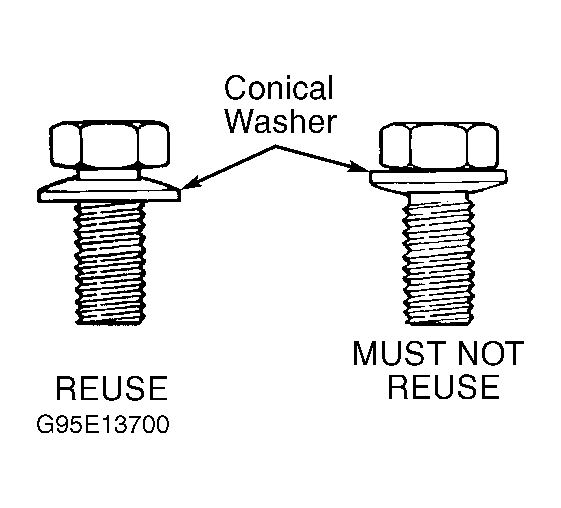

Fig 1: Identifying Conical Washers

Courtesy of GENERAL MOTORS CORP.
