Automatic Trans: Diagnosis: Testing: Notes

NOTE: For additional scan tool information to assist diagnosis, see Fig 1 .

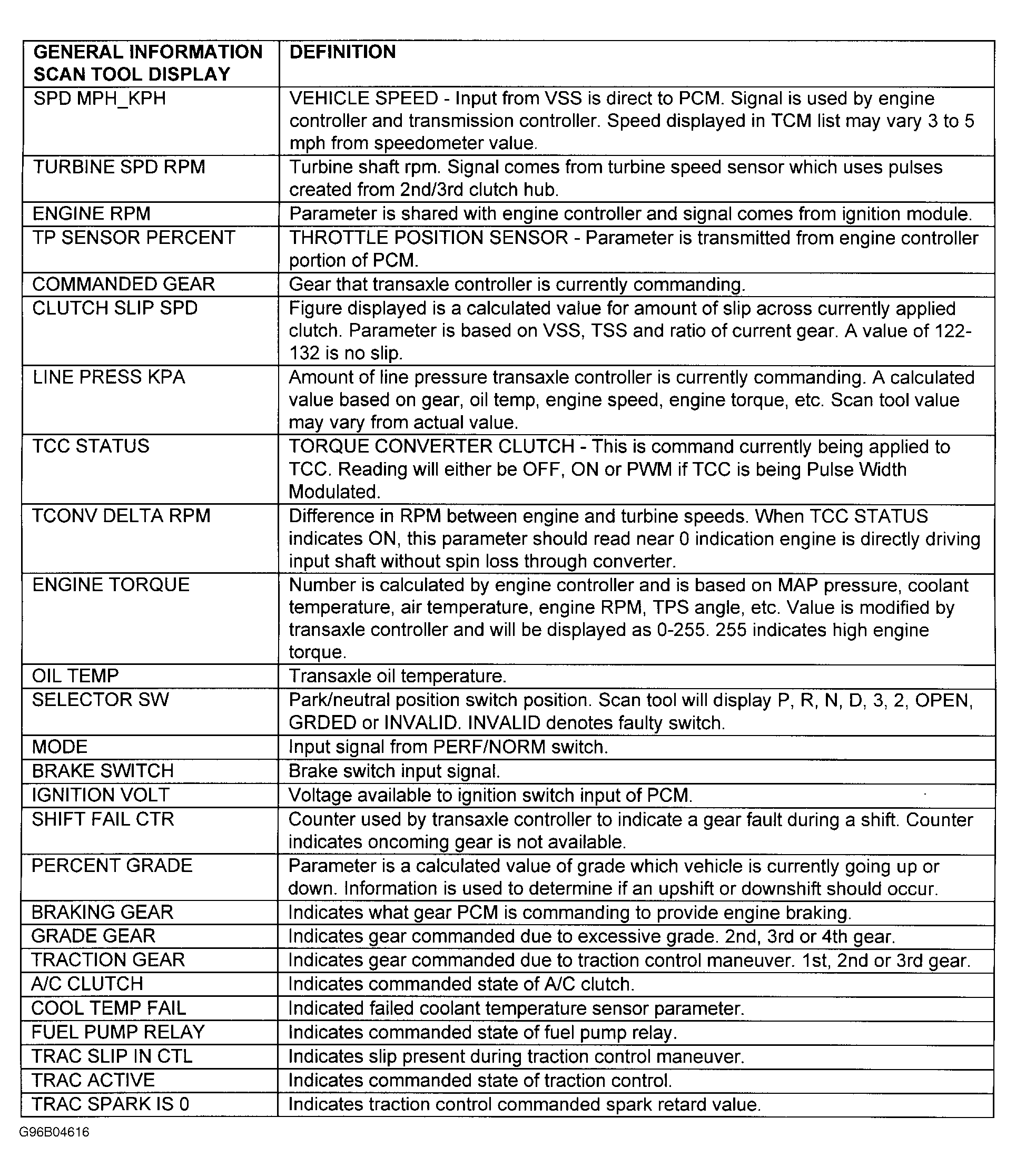

Fig 1: Scan Tool Displayed General Transaxle Information

Courtesy of GENERAL MOTORS CORP.

NOTE: For connector terminal identification, see CONNECTOR IDENTIFICATION . For wiring diagrams, see WIRING DIAGRAMS .

CAUTION: Always turn ignition switch to OFF position prior to disconnecting or connecting any module connector.
