Connector Identification

NOTE: All connectors shown are harness connector views. Selector switch is also known as neutral switch or Park/Neutral Position (PNP) switch.
CONNECTOR IDENTIFICATION DIRECTORY

Description Illustration
Powertrain Control Module See Fig 1 and Fig 2
Park/Neutral Position Switch See Fig 3
Transaxle Actuators See Fig 4
Transaxle Temperature Sensor See Fig 5
Turbine Speed Sensor See Fig 6
Vehicle Speed Sensor See Fig 6
Fig 1: Identifying PCM J3 Connector Terminals
G96F04618Courtesy of GENERAL MOTORS CORP.

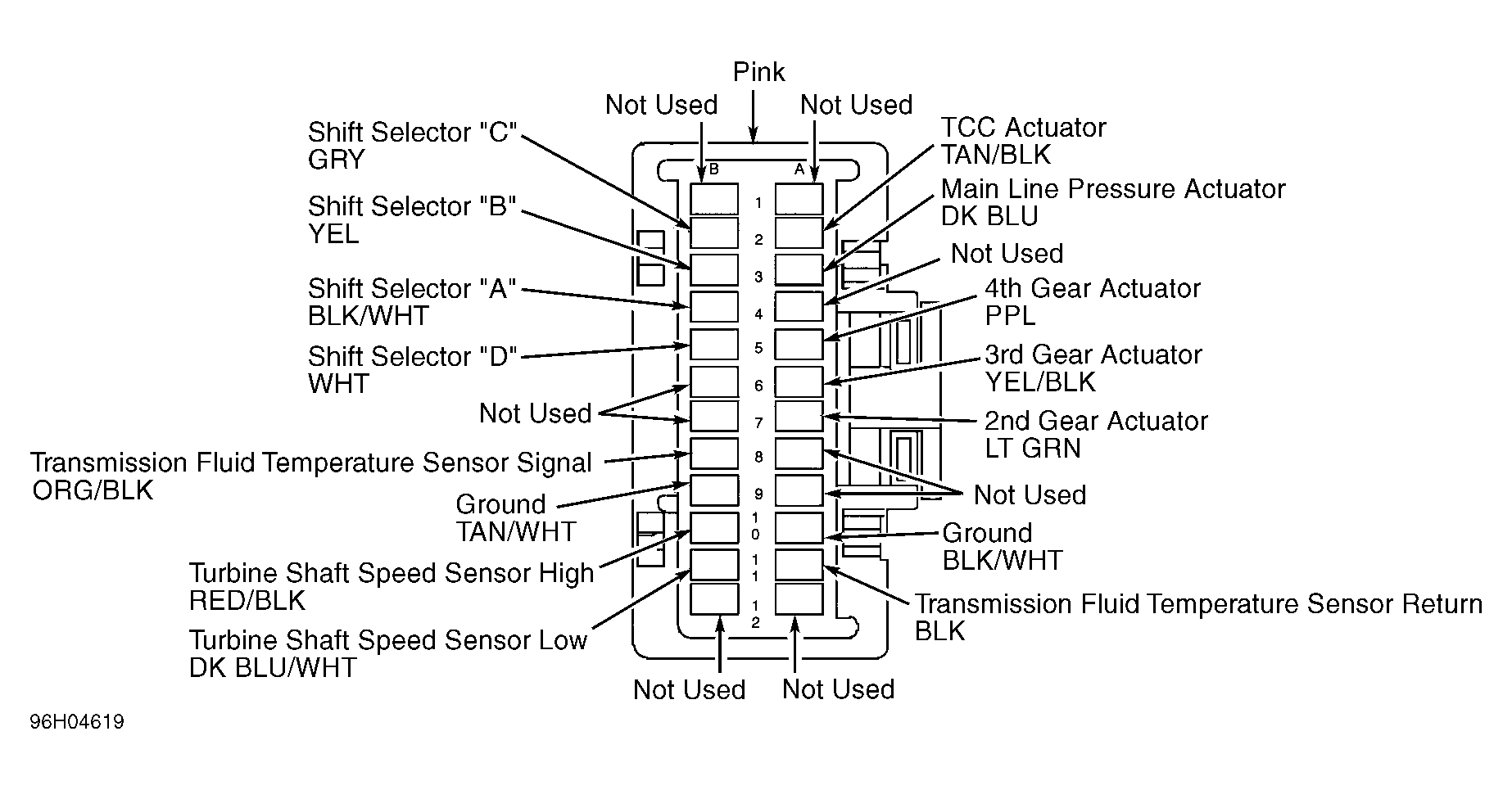

Fig 2: Identifying PCM J4 Connector Terminals
G96H04619Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Selector Switch Connector Terminals
G96E04608Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Transaxle Actuators Connector Terminals
G96G04609Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Transaxle Temperature Sensor Connector Terminals
G96J04615Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Turbine Speed Sensor & Vehicle Speed Sensor Connector Terminals
G96A04611Courtesy of GENERAL MOTORS CORP.
