Abs Control Module

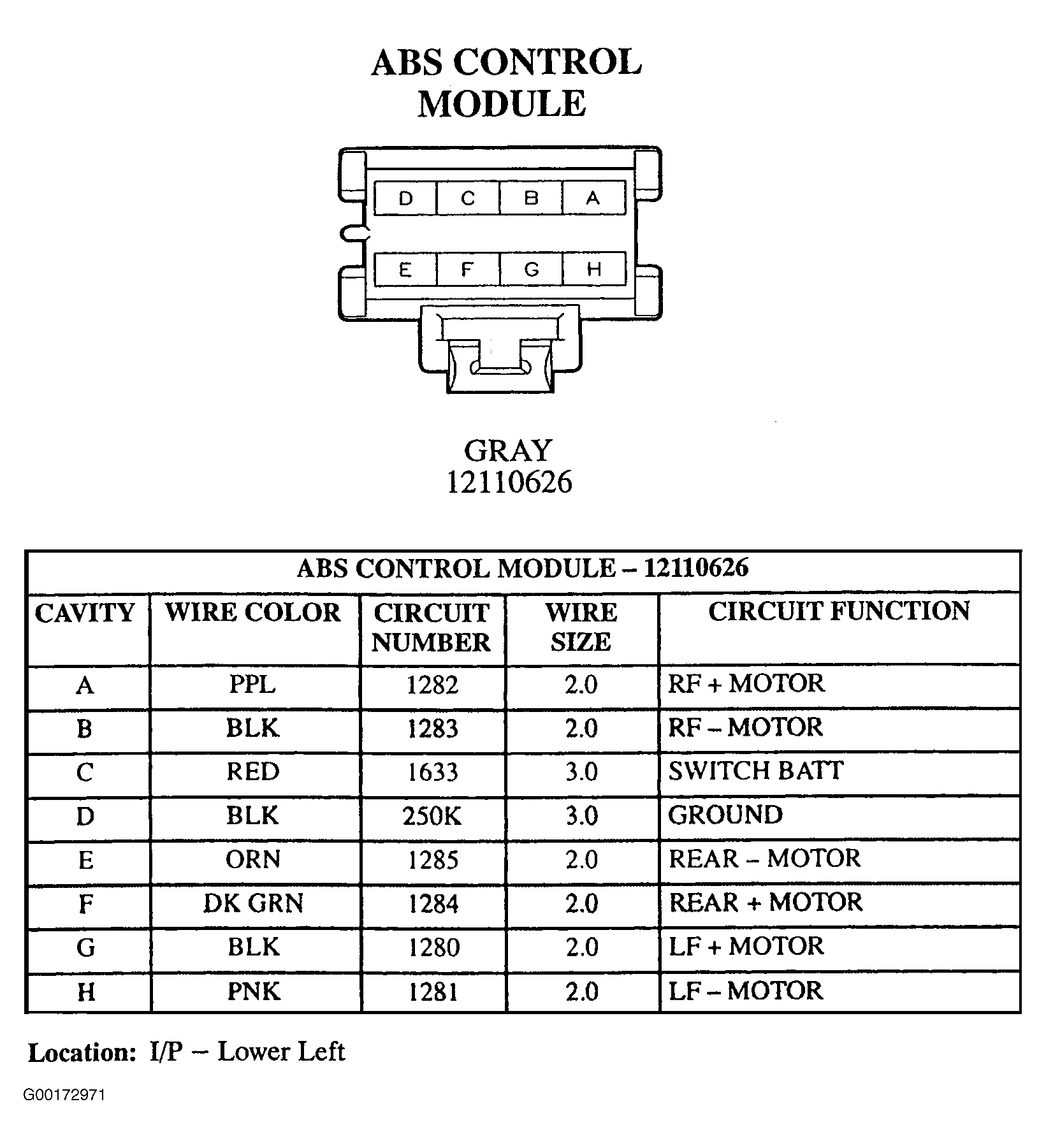

Fig 1: ABS Control Module - 8-Pin Connector (12110626) - Gray (1 Of 2)
G00172971Courtesy of GENERAL MOTORS CORP.

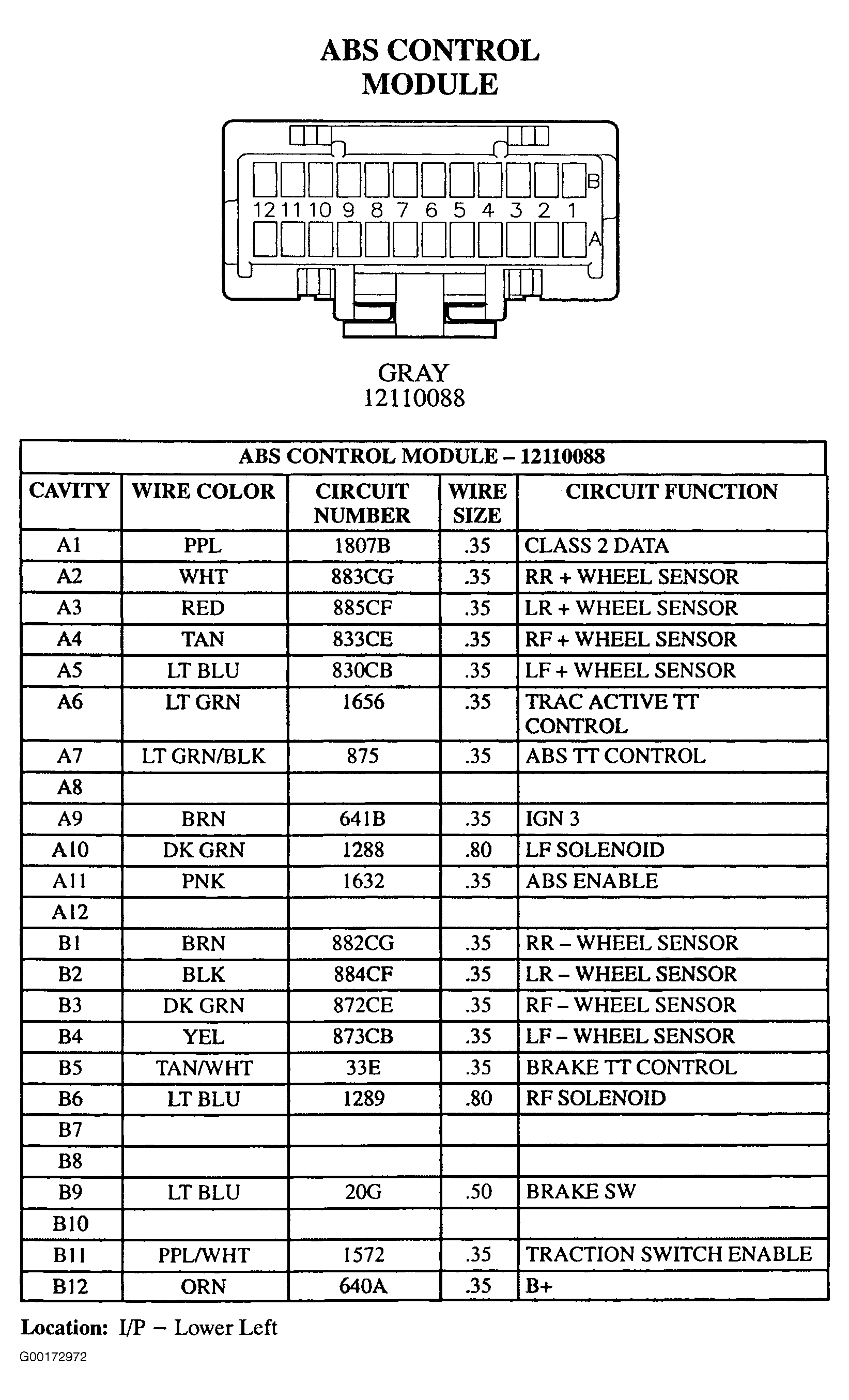

Fig 2: ABS Control Module - 24-Pin Connector (12110088) - Gray (2 Of 2)
G00172972Courtesy of GENERAL MOTORS CORP.
