Remote Keyless Entry (RKE) Module

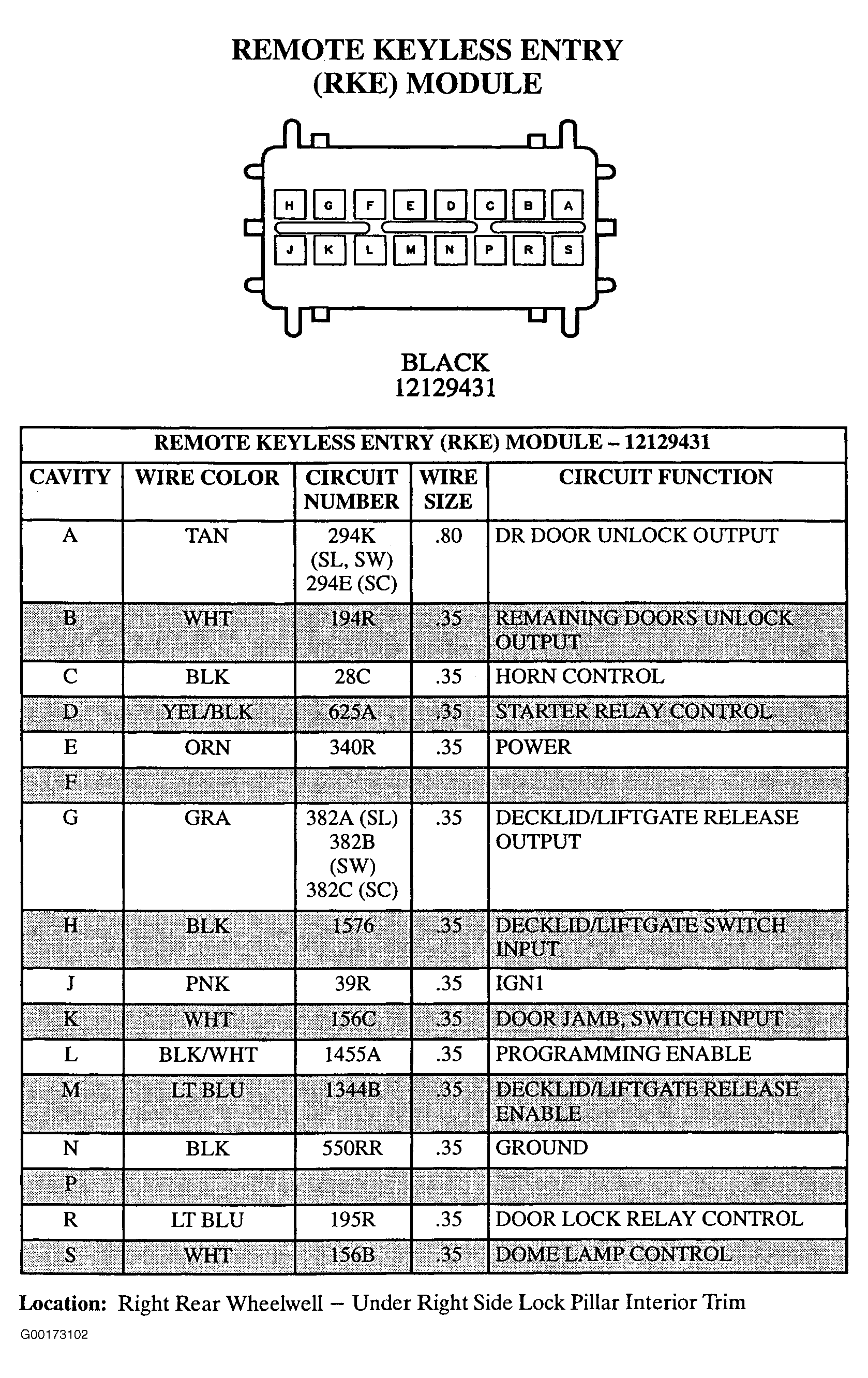

Fig 1: Remote Keyless Entry (RKE) Module - 16-Pin Connector (12129431) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
