Removal Procedure

Fig 1: Mirror Trim Panel
GM869288Courtesy of GENERAL MOTORS COMPANY
  1. Remove mirror trim panel (1) by pulling outward.
  2. Loosen set screw and disconnect cable from trim panel on manual mirror.
  3. Remove the mirror insulator, right side shown, left typical.

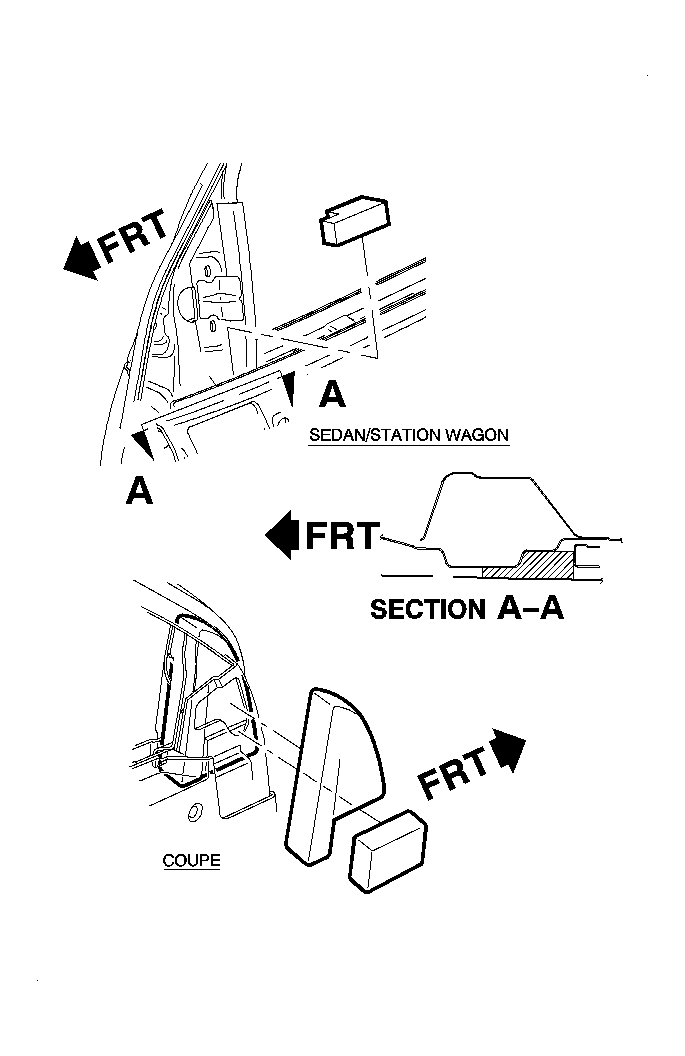

    Fig 2: Foam Filler
    GM860840Courtesy of GENERAL MOTORS COMPANY
  4. Remove foam filler from door frame.
  5. Disconnect harness connector if side power electric mirror.

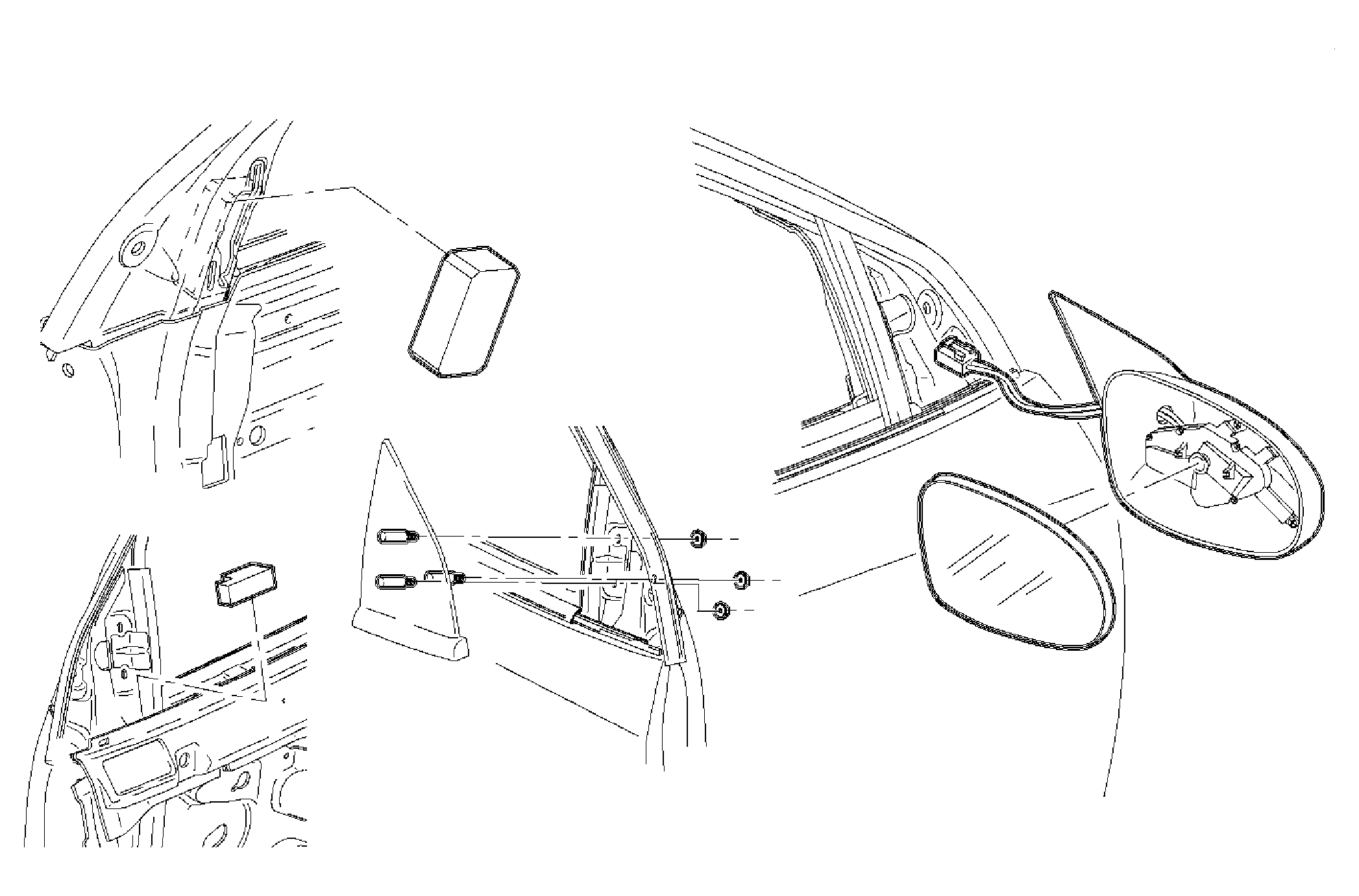

    Fig 3: Mirror Assembly Nuts
    GM877550Courtesy of GENERAL MOTORS COMPANY
  6. Remove nuts from mirror assembly and remove mirror and seal.
