Removal Procedure

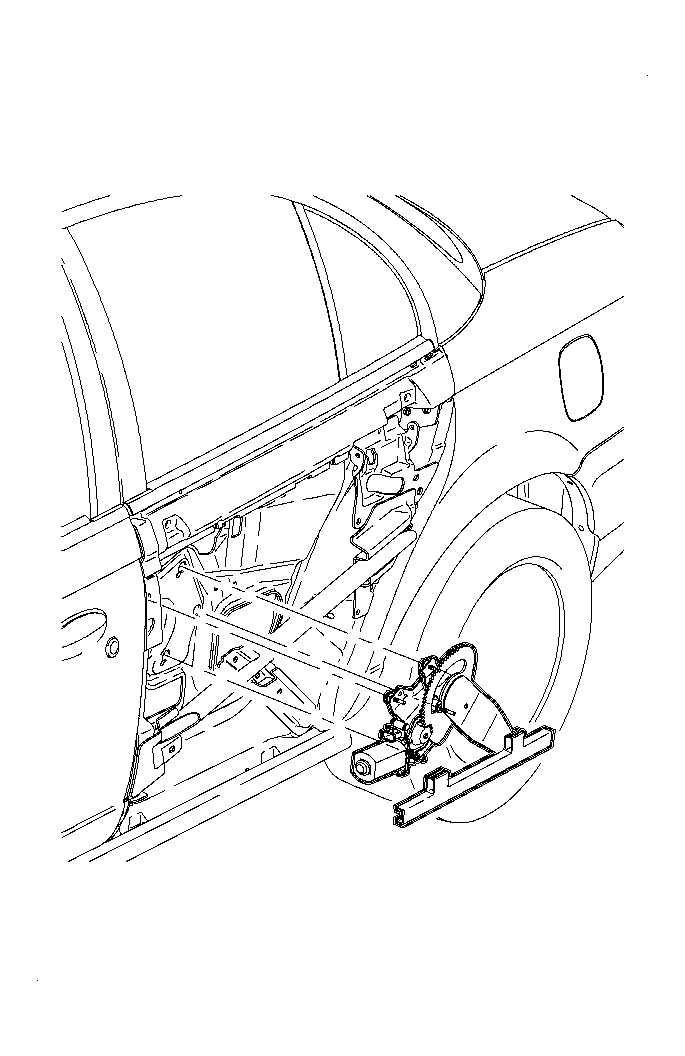

Fig 1: Rear Side Door Window Regulator
GM861007Courtesy of GENERAL MOTORS COMPANY
NOTE: Be careful not to damage door sound insulator. Make sure all seals are properly positioned.
  1. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Sedan/Wagon) . The outer panel is removed in the illustration to show the location.
  2. Remove the window. Refer to Rear Side Door Window Replacement .
  3. Disconnect the harness from the power regulator.
  4. Loosen the regulator bolts and slide the regulator assembly out of the door.
