Body To I/P Inline I/P Side Connector

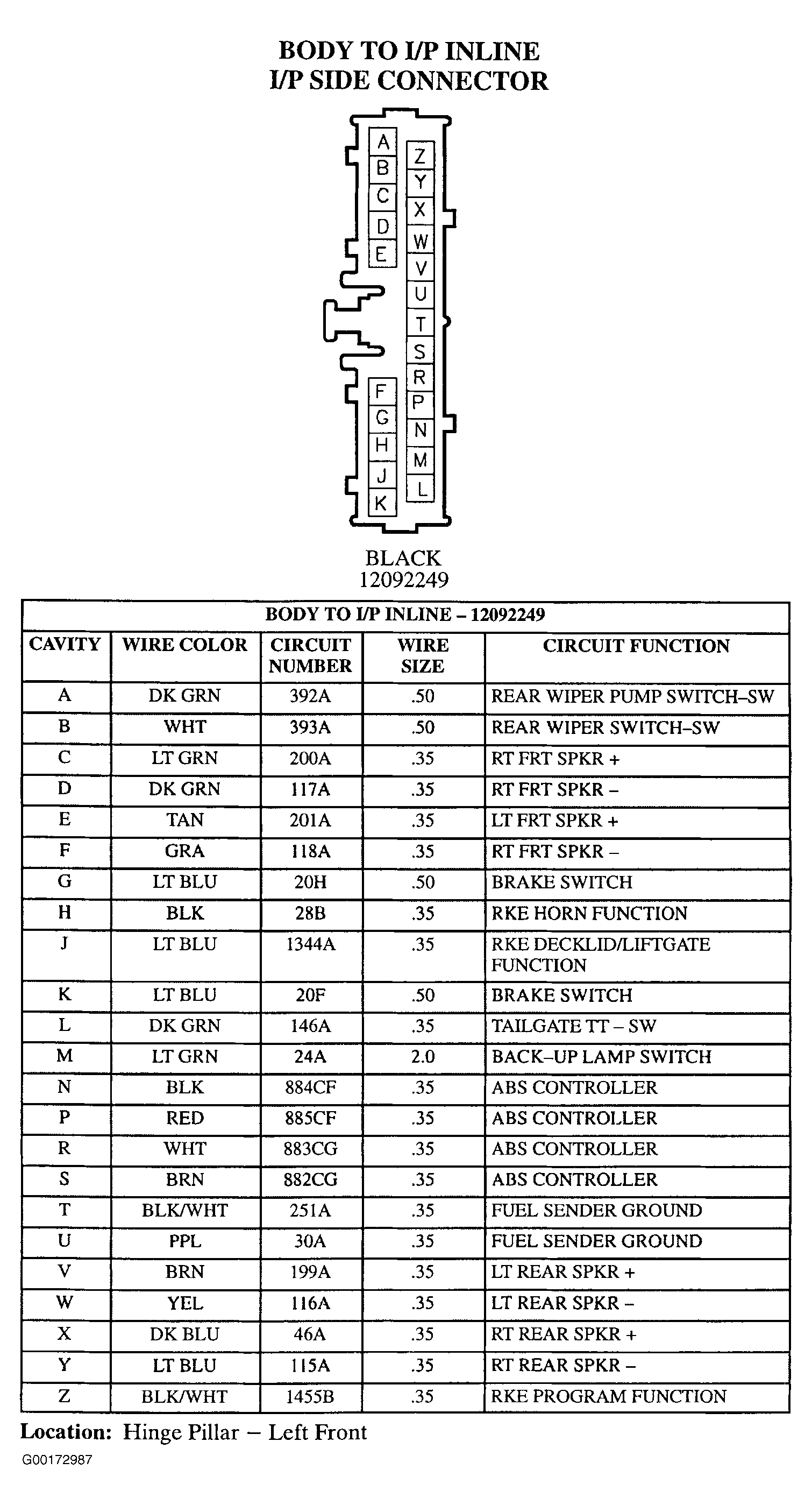

Fig 1: Body To I/P Inline I/P Side Connector - 23-Pin Connector (12092249) - Black
G00172987Courtesy of GENERAL MOTORS CORP.
