Cargo Lamp - Wagon

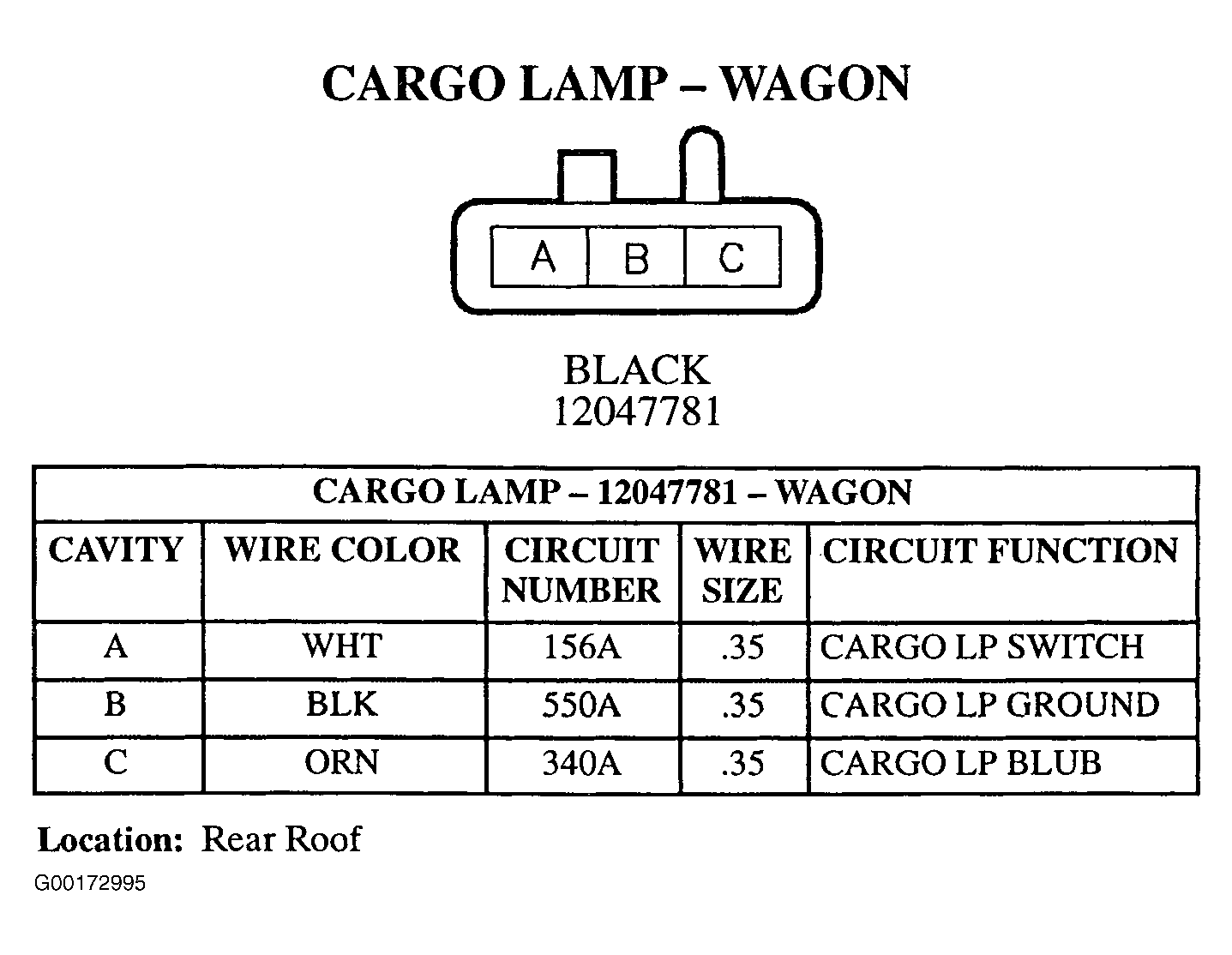

Fig 1: Cargo Lamp (Wagon) - 3-Pin Connector (12047781) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
