Cargo Lamp Switch - Wagon

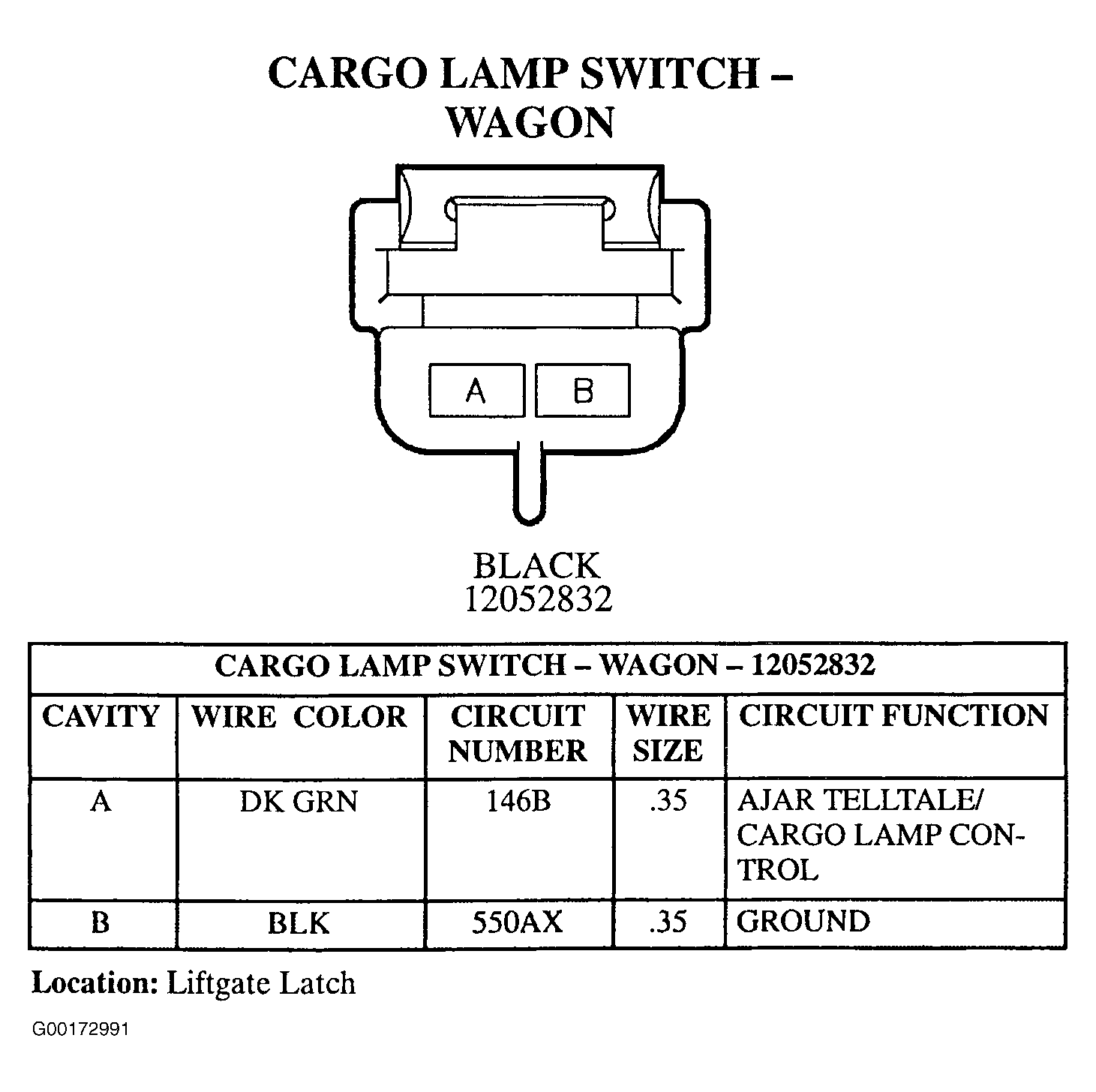

Fig 1: Cargo Lamp Switch (Wagon) - 2-Pin Connector (12052832) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
