Cigar Lighter Ring Illumination

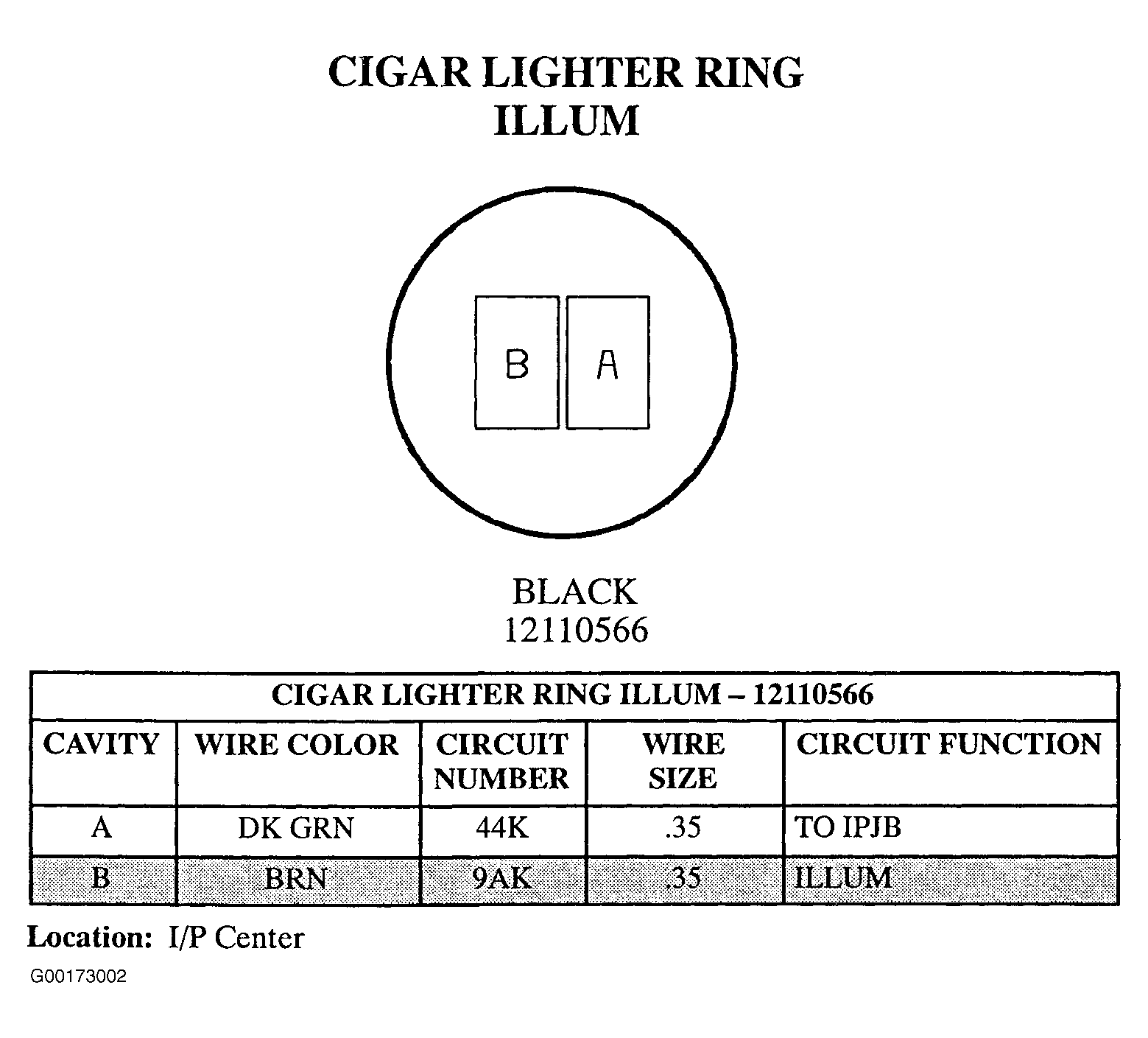

Fig 1: Cigar Lighter Ring Illum - 2-Pin Connector (12110566) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
