A/C Compressor

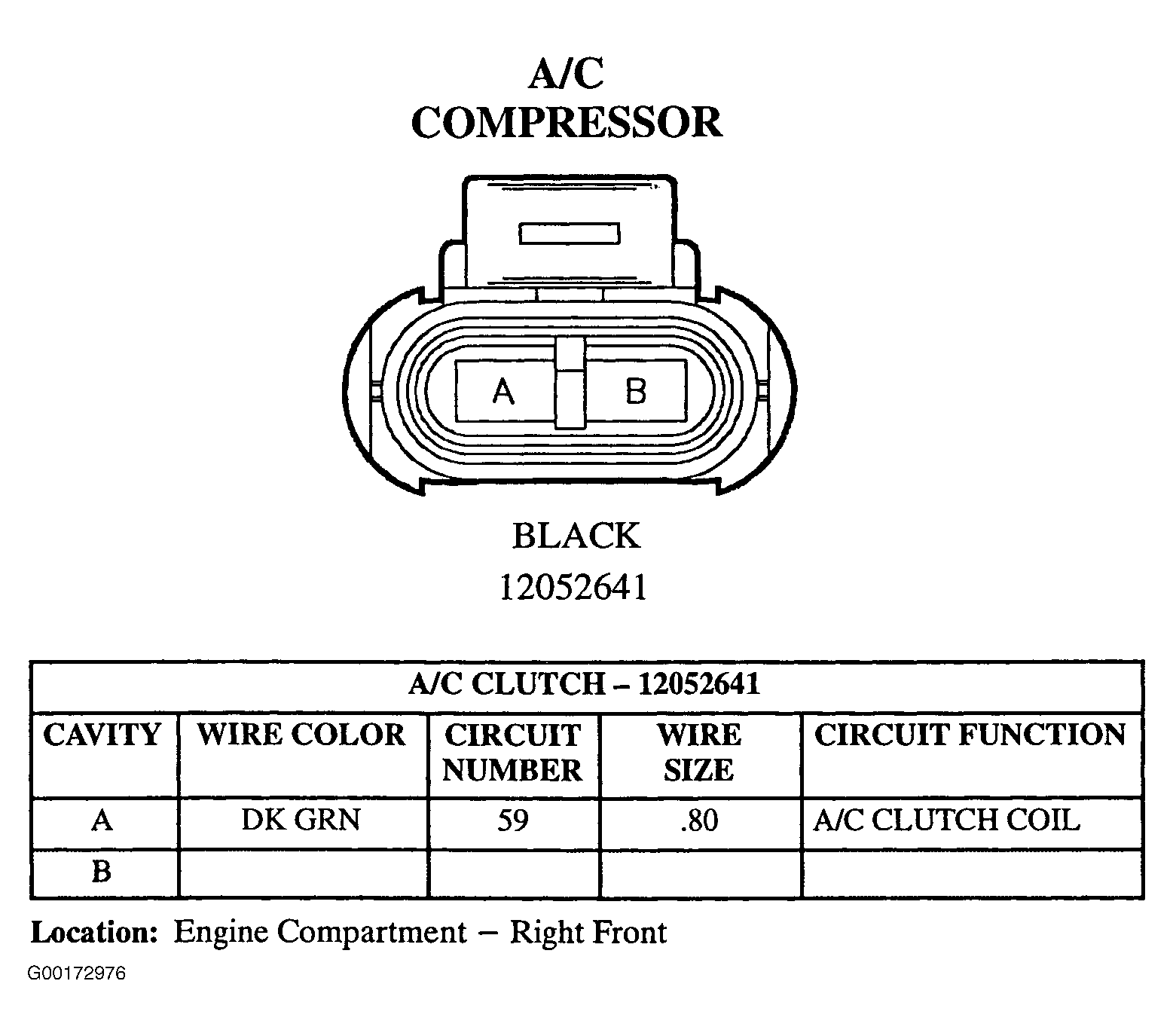

Fig 1: A/C Compressor - 2-Pin Connector (12052641) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
