Ignition Switch

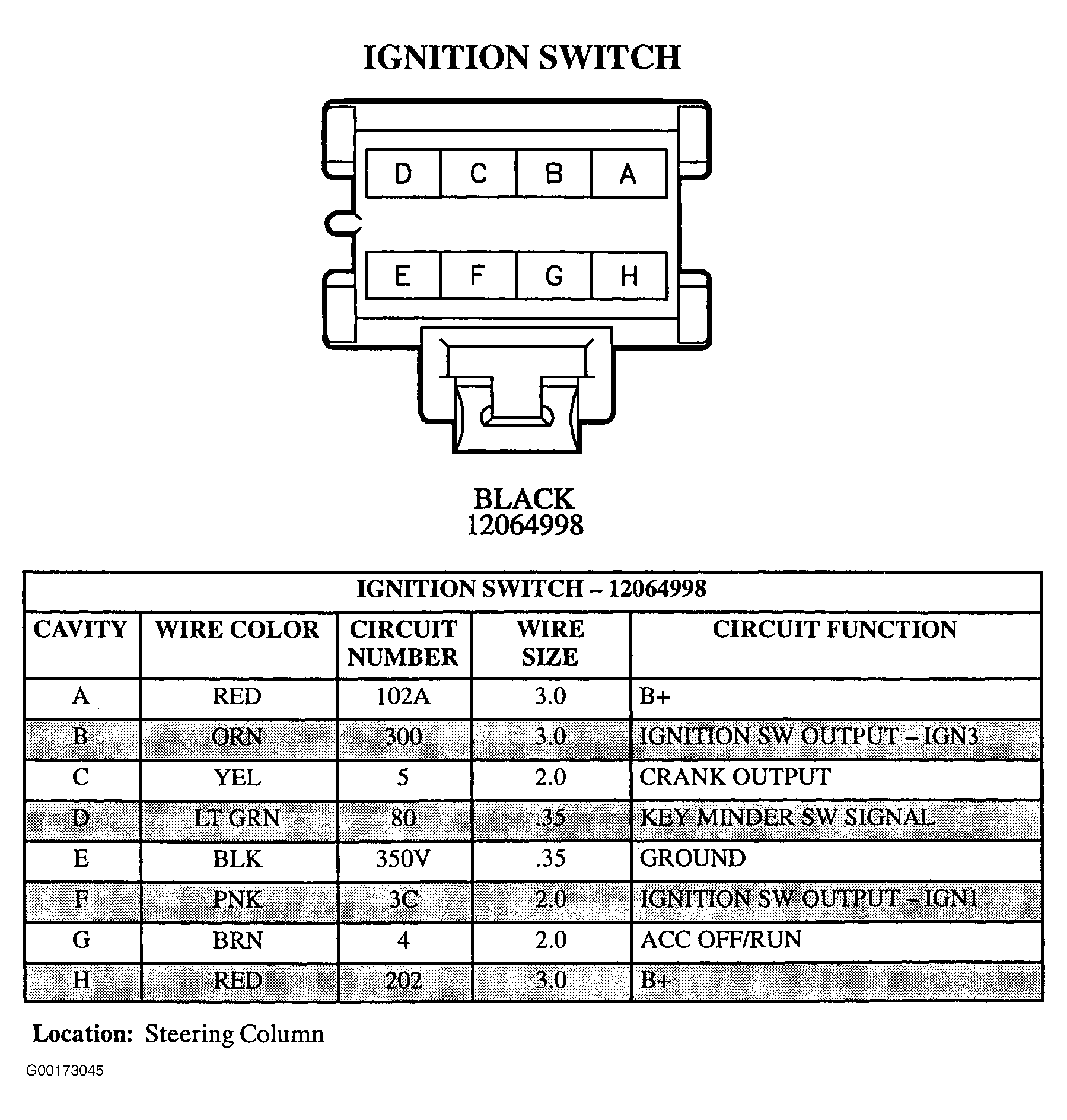

Fig 1: Ignition Switch - 8-Pin Connector (12064998) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
