Low Brake Fluid Switch

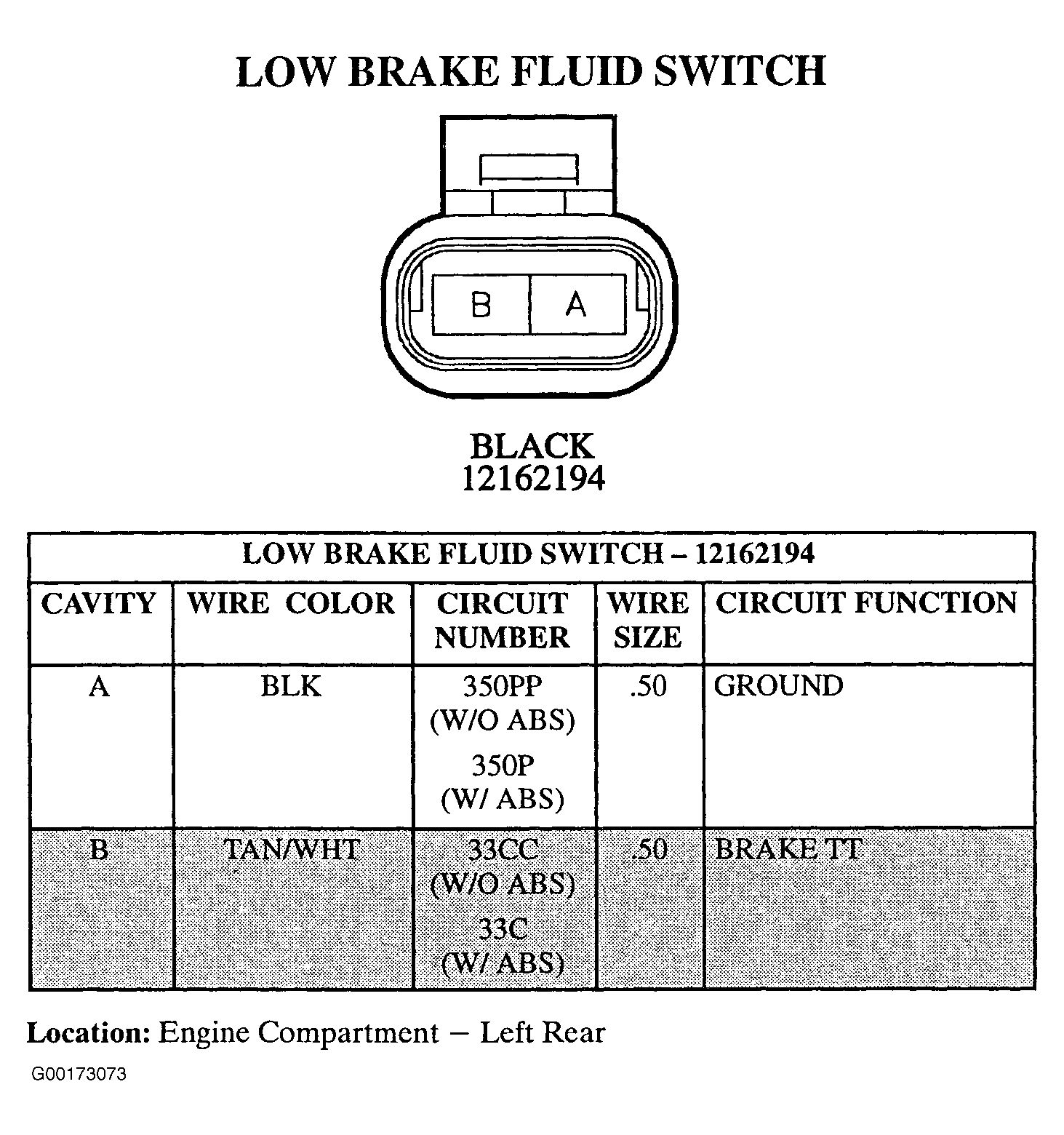

Fig 1: Low Brake Fluid Switch - 2-Pin Connector (12162194) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
