Oil Pressure Switch

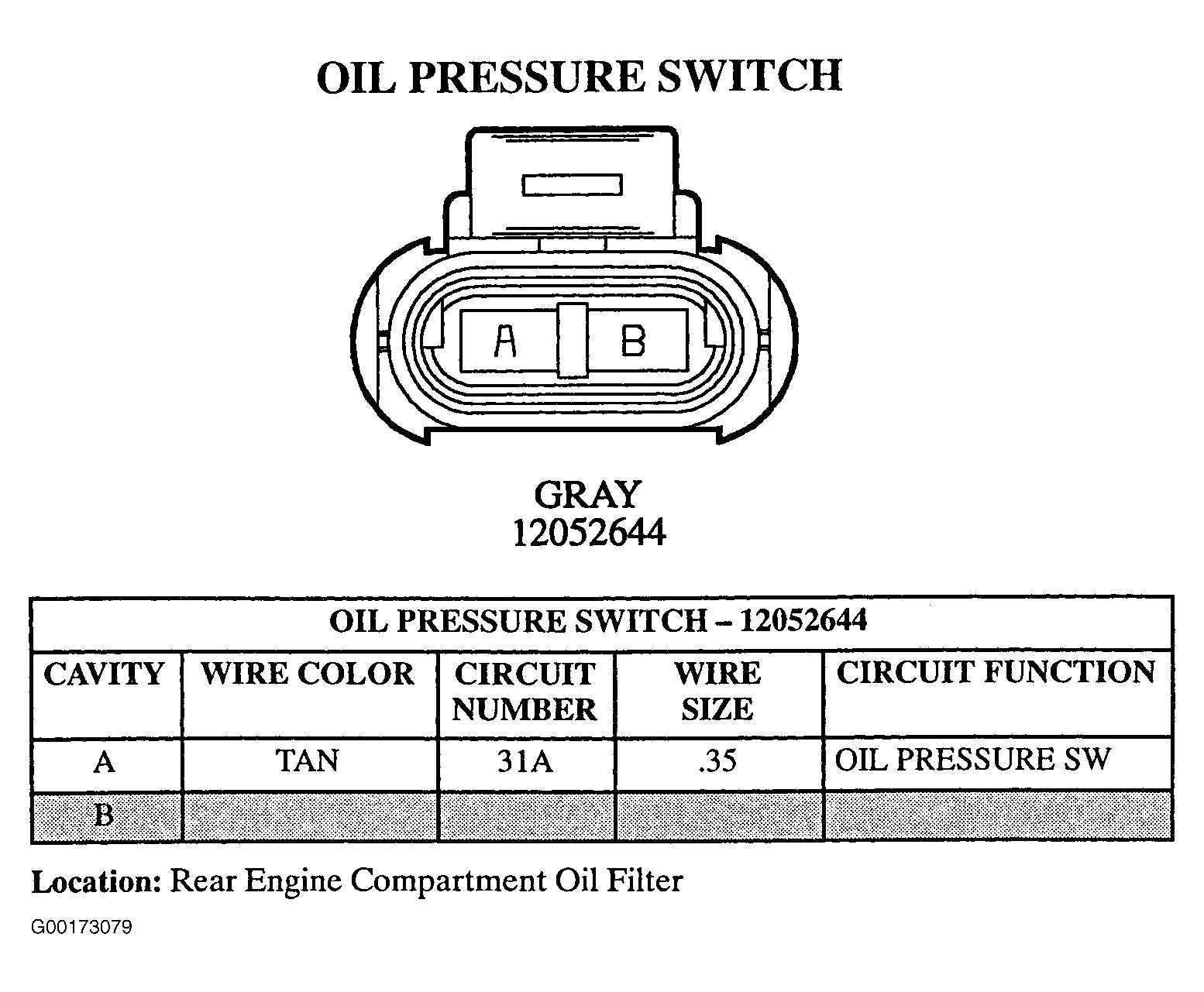

Fig 1: Oil Pressure Switch - 2-Pin Connector (12052644) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
