Oxygen Sensor

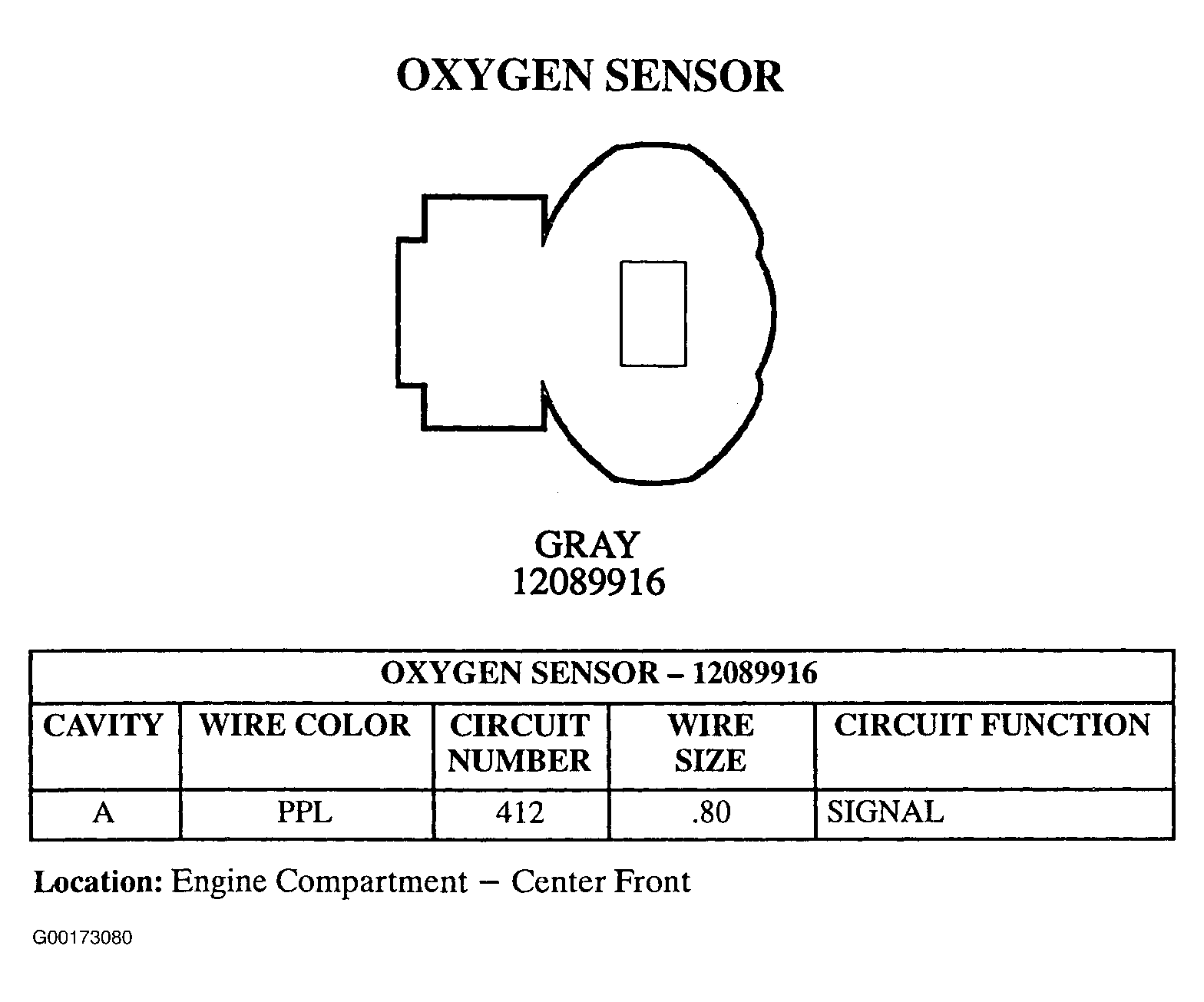

Fig 1: Oxygen Sensor - 1-Pin Connector (12089916) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
