Park/Neutral Position Switch

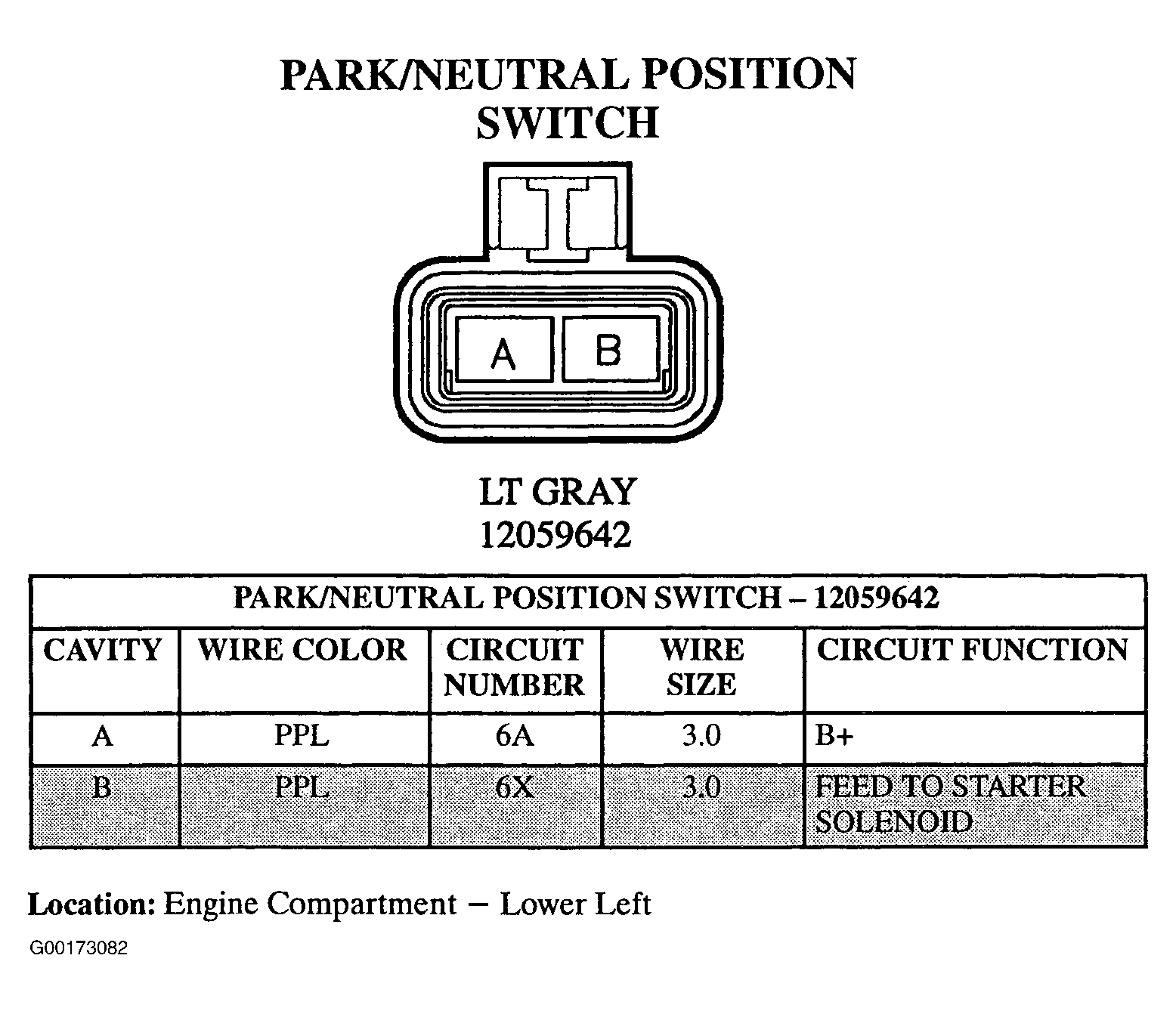

Fig 1: Park/Neutral Position Switch - 2-Pin Connector (12059642) - Light Gray
Courtesy of GENERAL MOTORS CORP.
Fig 2: Park/Neutral Position Switch - 6-Pin Connector (12162260) - Black
Courtesy of GENERAL MOTORS CORP.

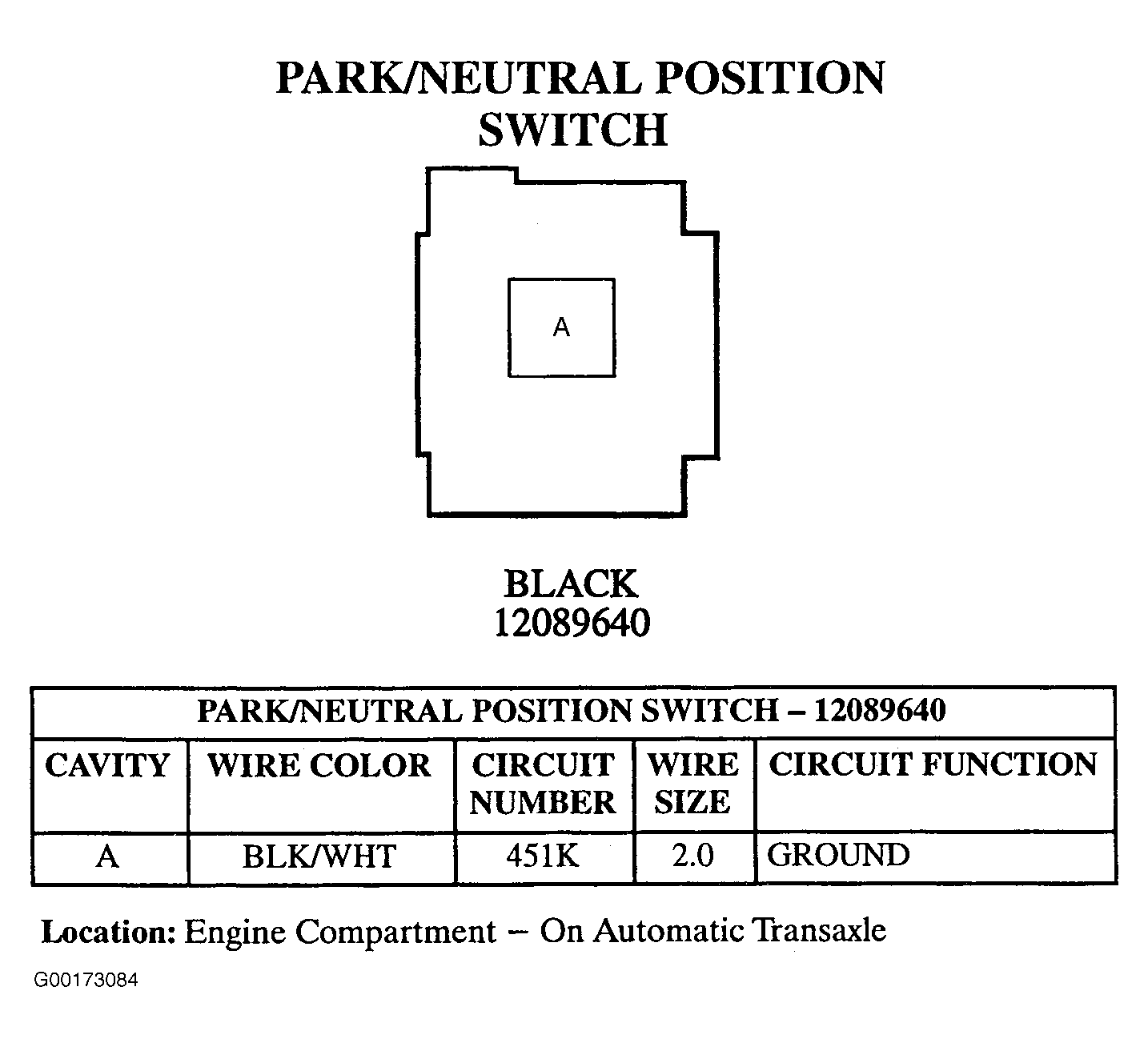

Fig 3: Park/Neutral Position Switch - 1-Pin Connector (12089640) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
