Wiper Switch

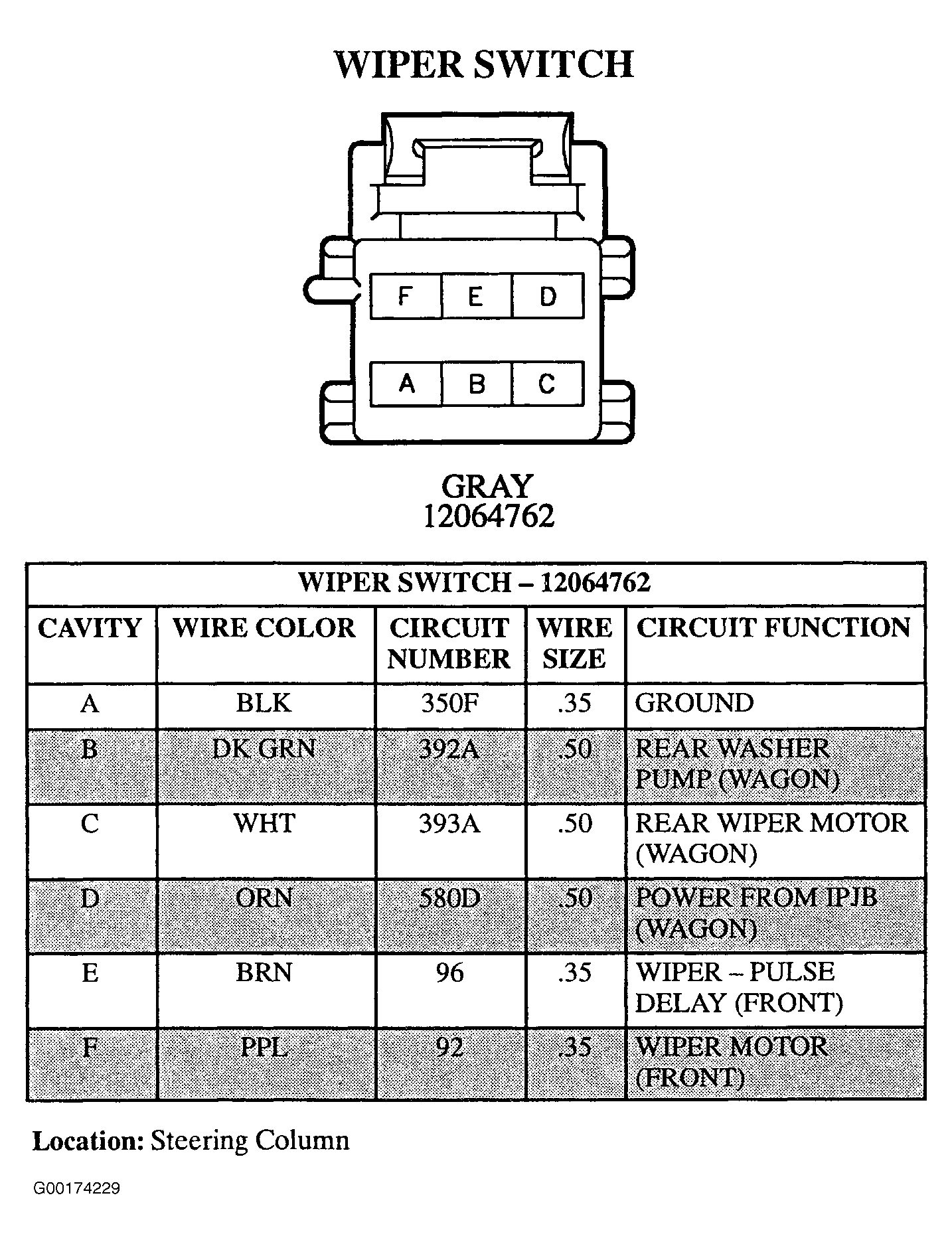

Fig 1: Wiper Switch - 6-Pin Connector (1206476) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
