Removal Procedure

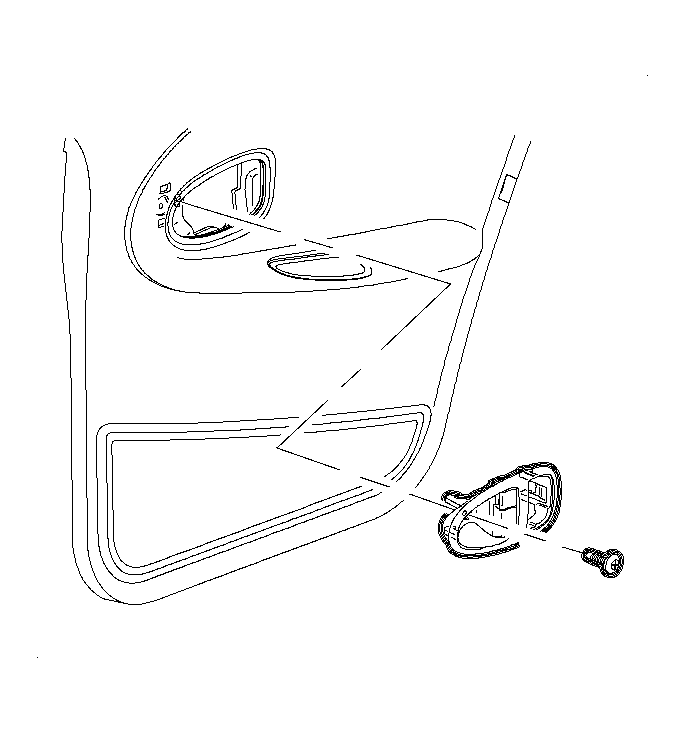

Fig 1: Rear Side Door Window Switch
GM862937Courtesy of GENERAL MOTORS COMPANY

  1. Remove the screw from center of inside door handle assembly.
  2. Slide the door handle assembly forward while pulling outward from the trim panel.
  3. Disconnect the electrical connector.
  4. Remove the switch from the door handle assembly by releasing the retainer tabs.
