Ash Tray Lamp

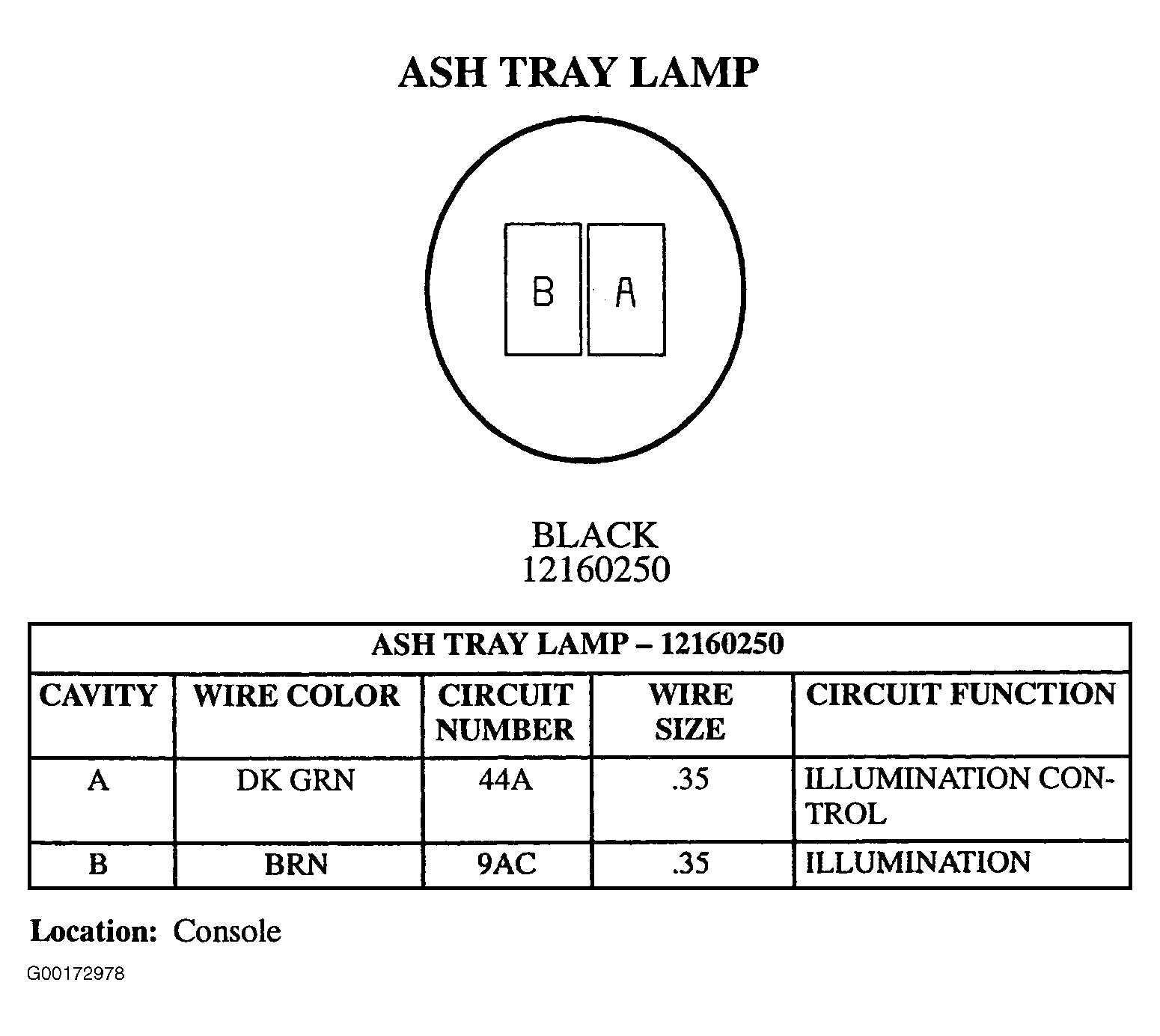

Fig 1: Ash Tray Lamp - 2-Pin Connector (12160250) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
