Blower Motor

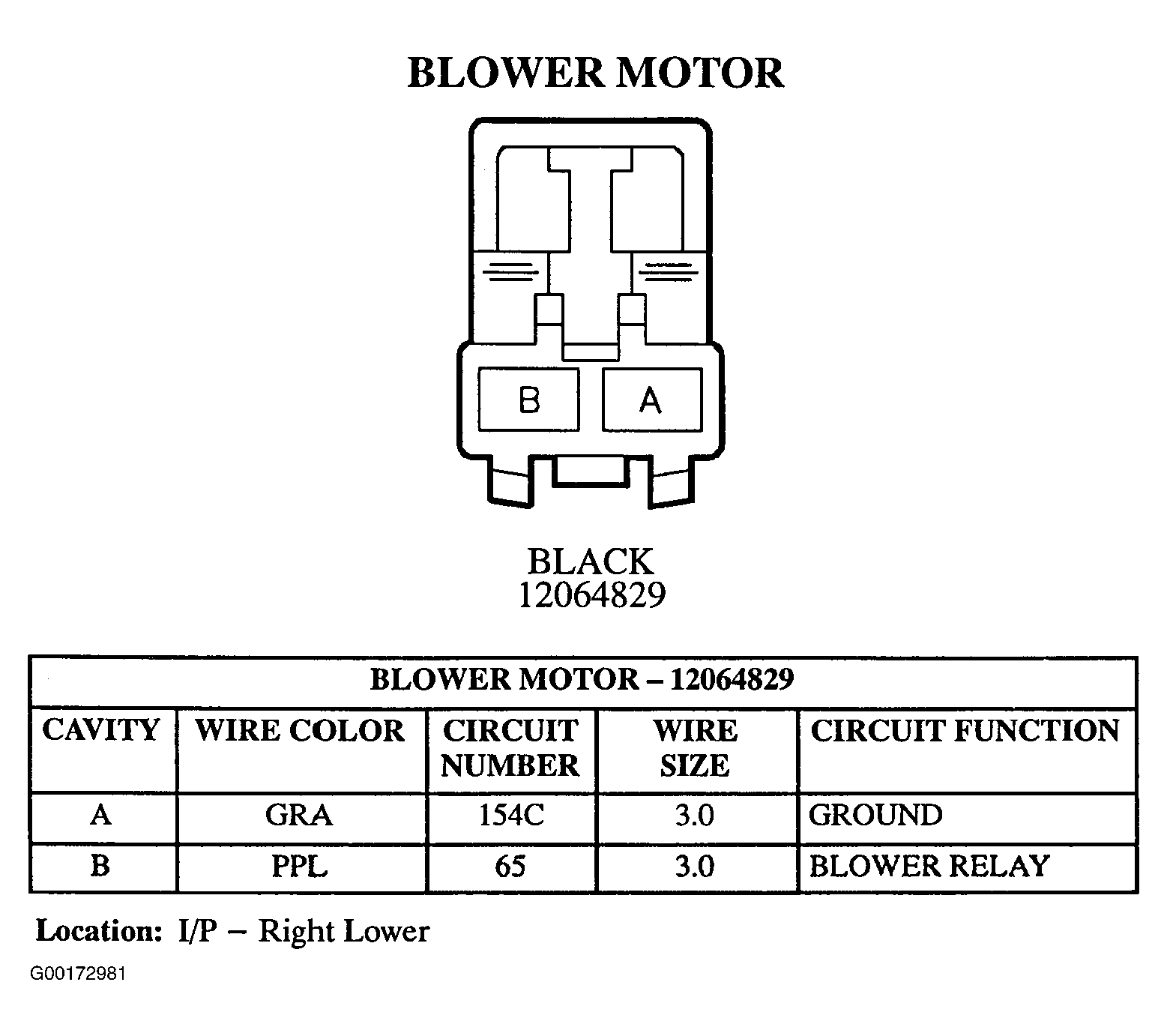

Fig 1: Blower Motor - 2-Pin Connector (12064829) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
