Data Link Connector (DLC)

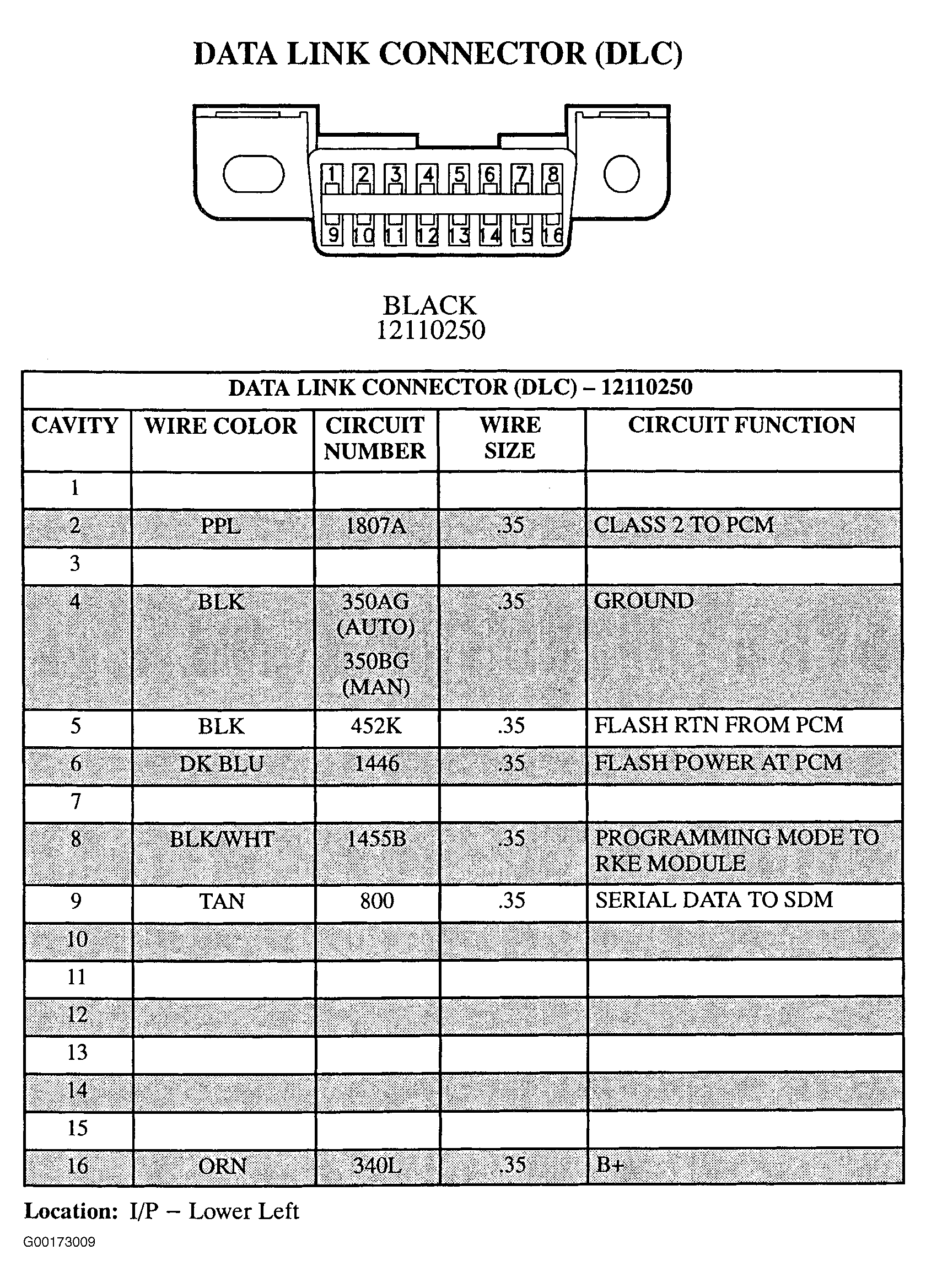

Fig 1: Sata Link Connector (DLC) - 16-Pin Connector (12110250) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
