HVAC Control Head (A/C & RECIRCULATION)

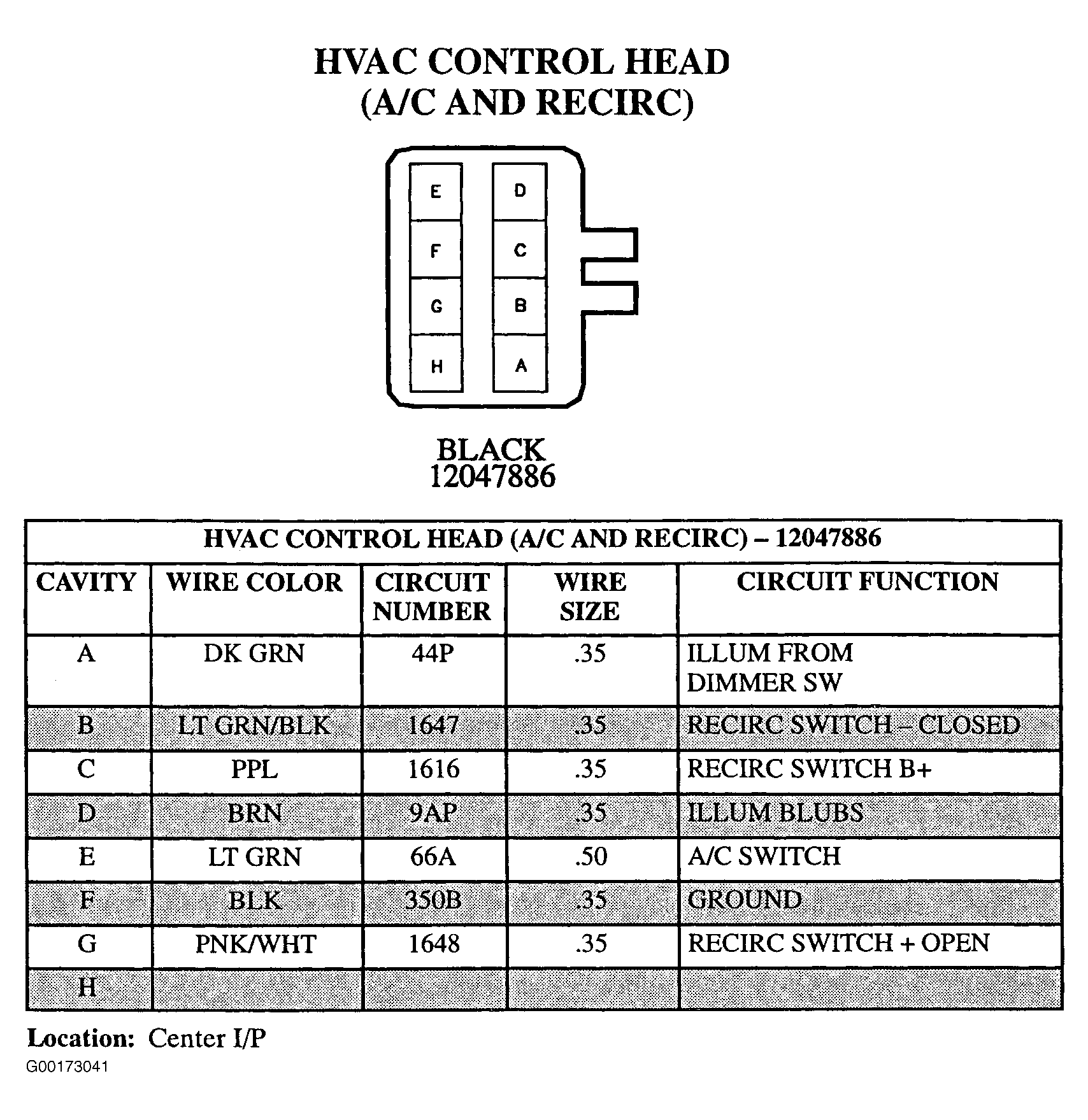

Fig 1: HVAC Control Head (A/C & Recirculation) - 8-Pin Connector (12047886) - Black
G00173041Courtesy of GENERAL MOTORS CORP.
