Radio W/Cd Changer Jumper

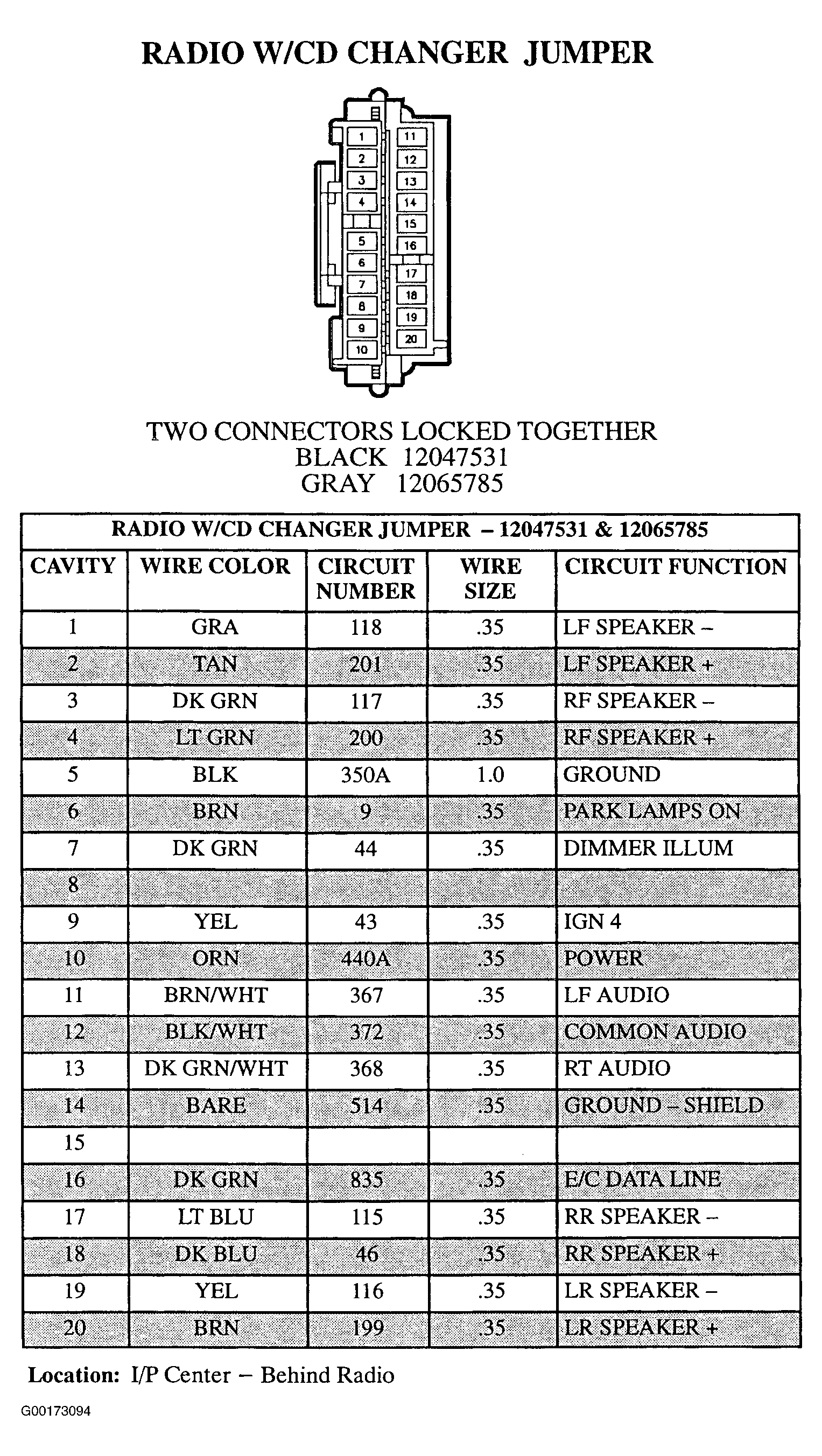

Fig 1: Radio W/CD Changer Jumper (Two Connectors Locked Together) - 10-Pin/10-Pin Connectors 12047531) - Black& (12065785) - Gray
G00173094Courtesy of GENERAL MOTORS CORP.
