Powertrain Control Module (PCM) Connector J3 (W/Manual Trans.)

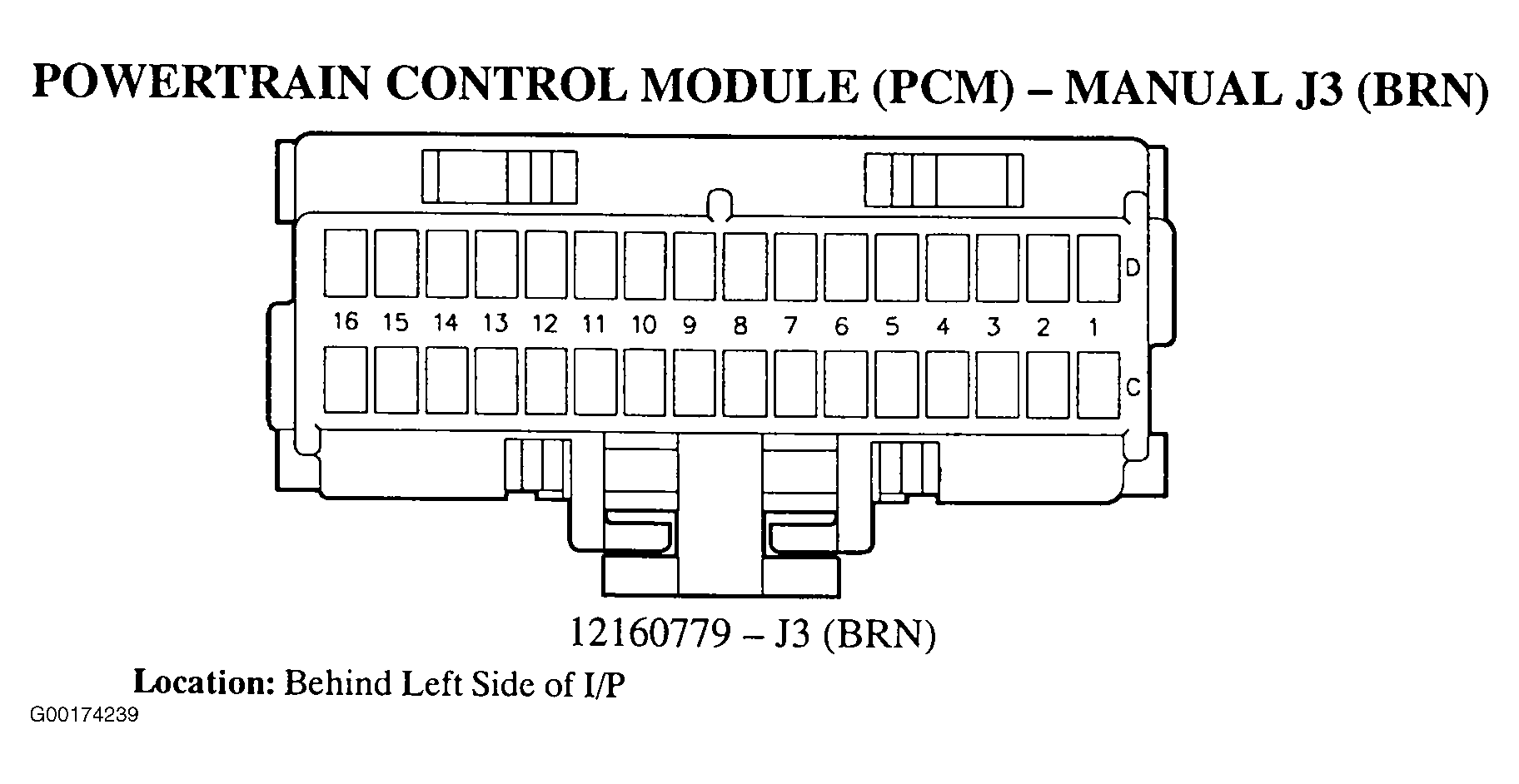

Fig 1: Powertrain Control Module (PCM) J3 - Manual Connector - 32-Pin Connector (12160779) - Brown (1 Of 2)
G00174239Courtesy of GENERAL MOTORS CORP.

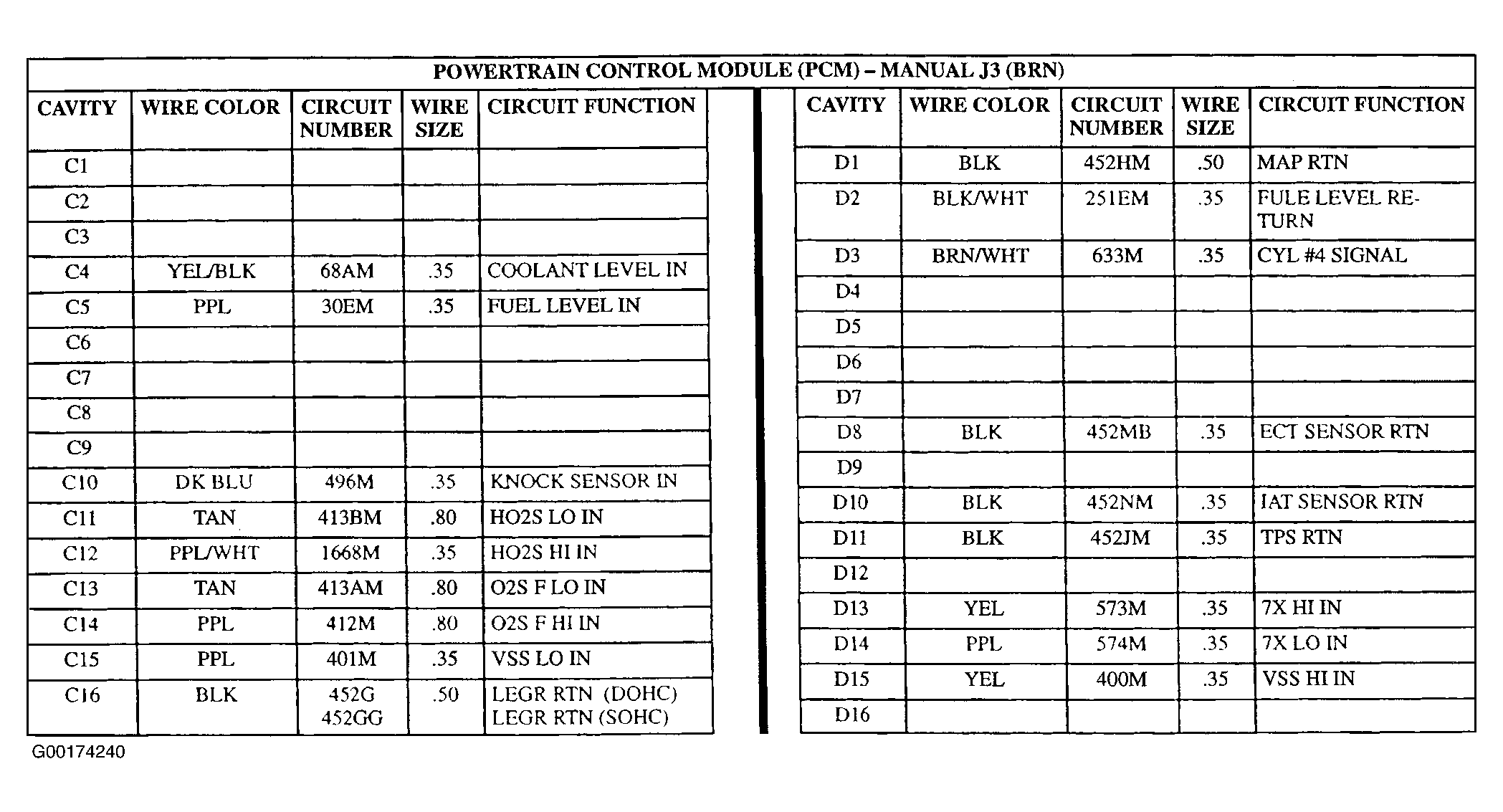

Fig 2: Powertrain Control Module (PCM) J3 - Maunual (Circuit Identification Chart) - 32-Pin Connector (12160779) - Brown (2 Of 2)
G00174240Courtesy of GENERAL MOTORS CORP.
