Engine Coolant Temperature Sensor

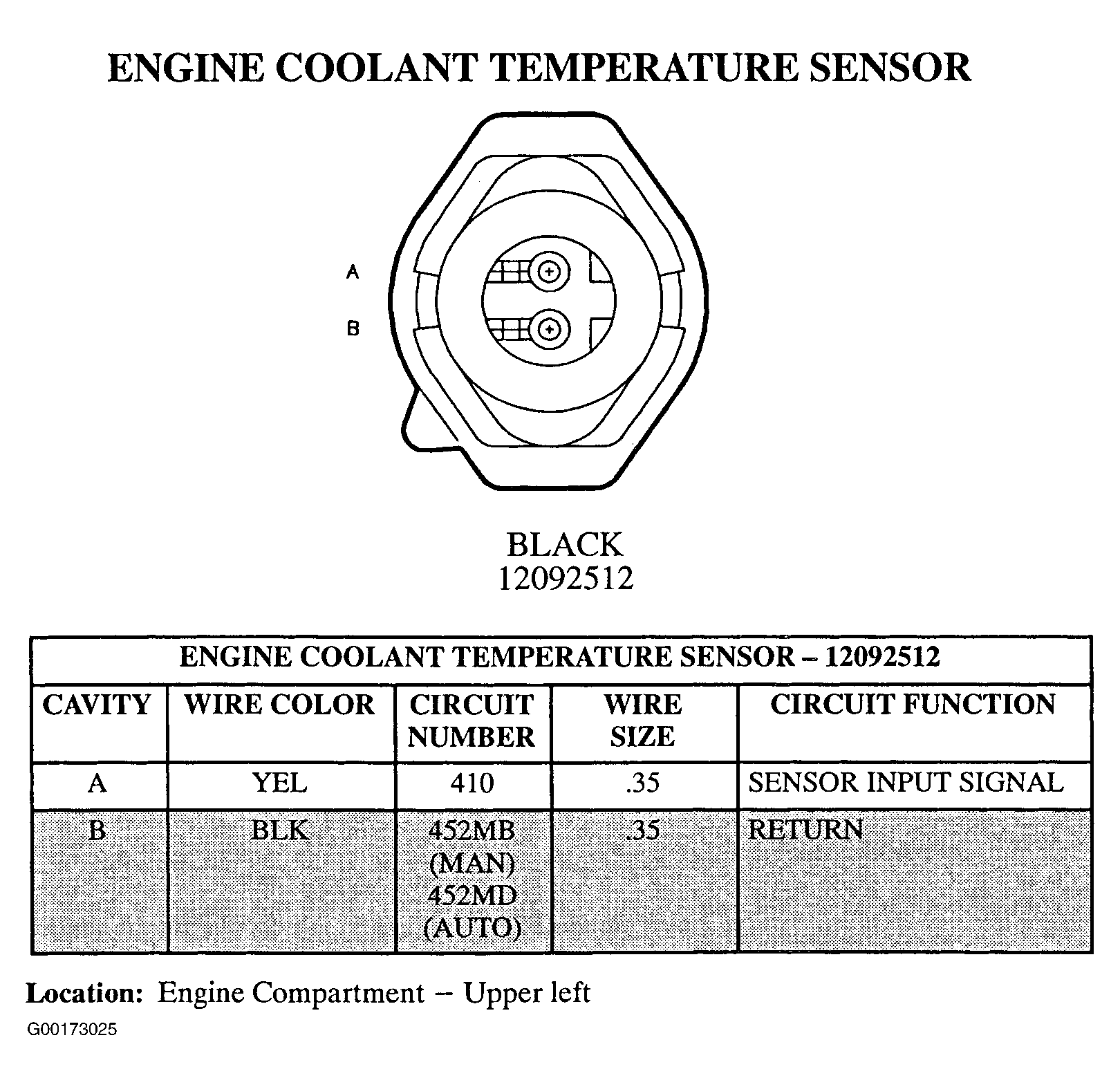

Fig 1: Engine Coolant Temperature Sensor - 2-Pin Connector (12092512) - Black
G00173025Courtesy of GENERAL MOTORS CORP.
