Headlamp High Beam

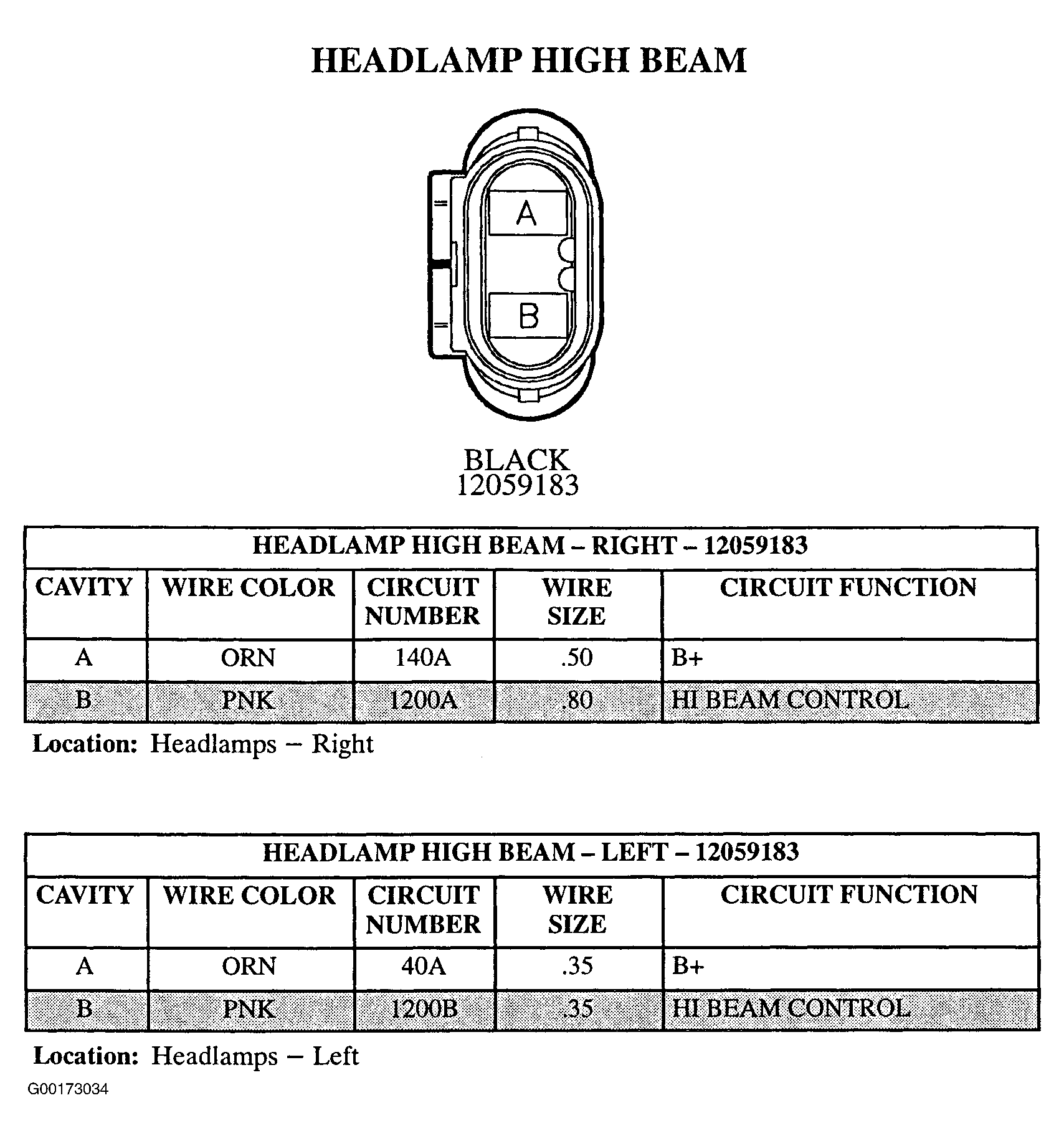

Fig 1: Headlamp High Beam - 2-Pin Connector (12059183) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
