Saturn
>>
1997
>>
SW1 Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Identification
>>
Turn/Hazard Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Turn/Hazard Switch

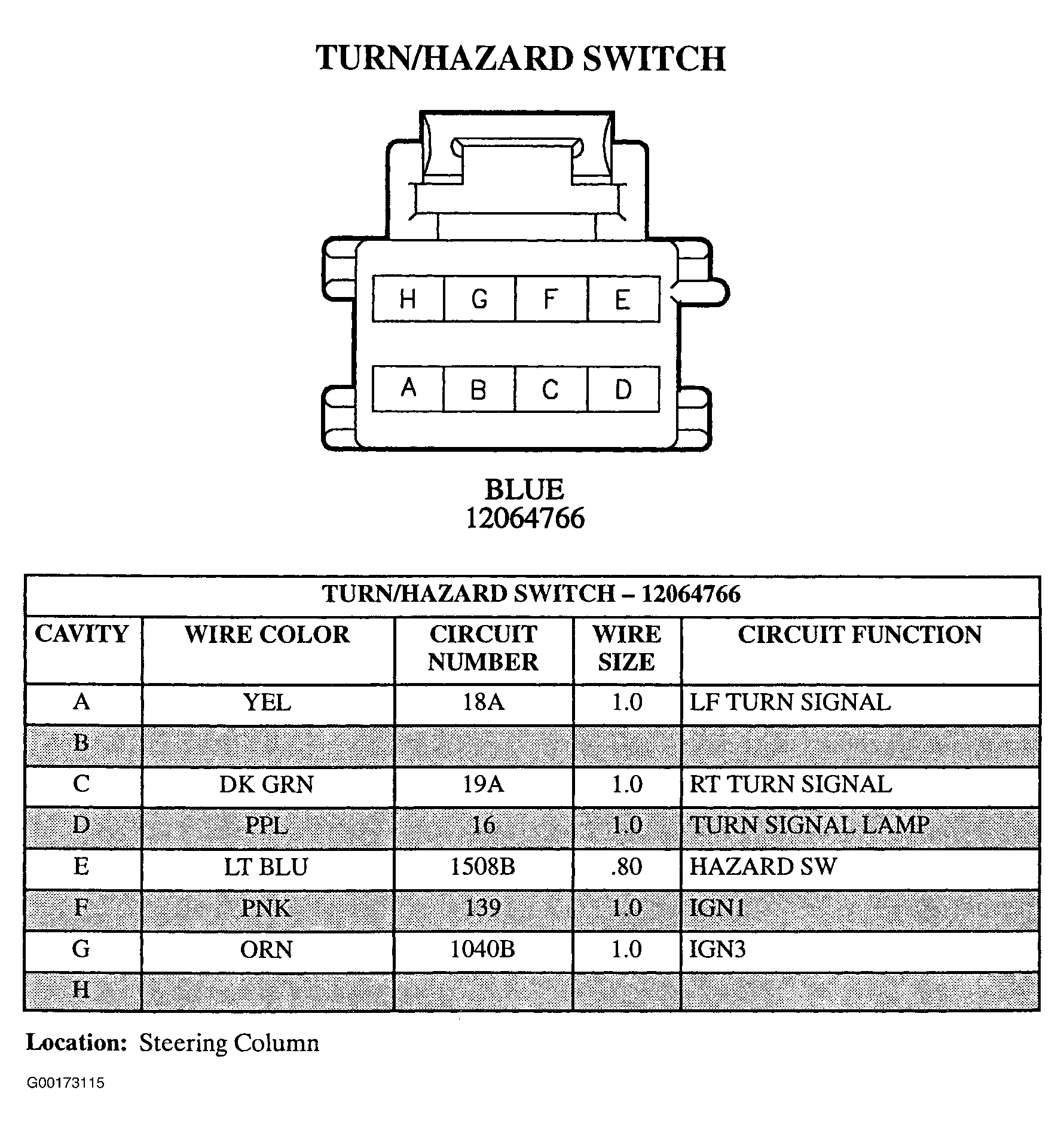

Fig 1: Turn/Hazard Switch - 8-Pin Connector (12064766) - Blue
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
