Power Mirror Switch Continuity Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Mirror Switch Continuity Check

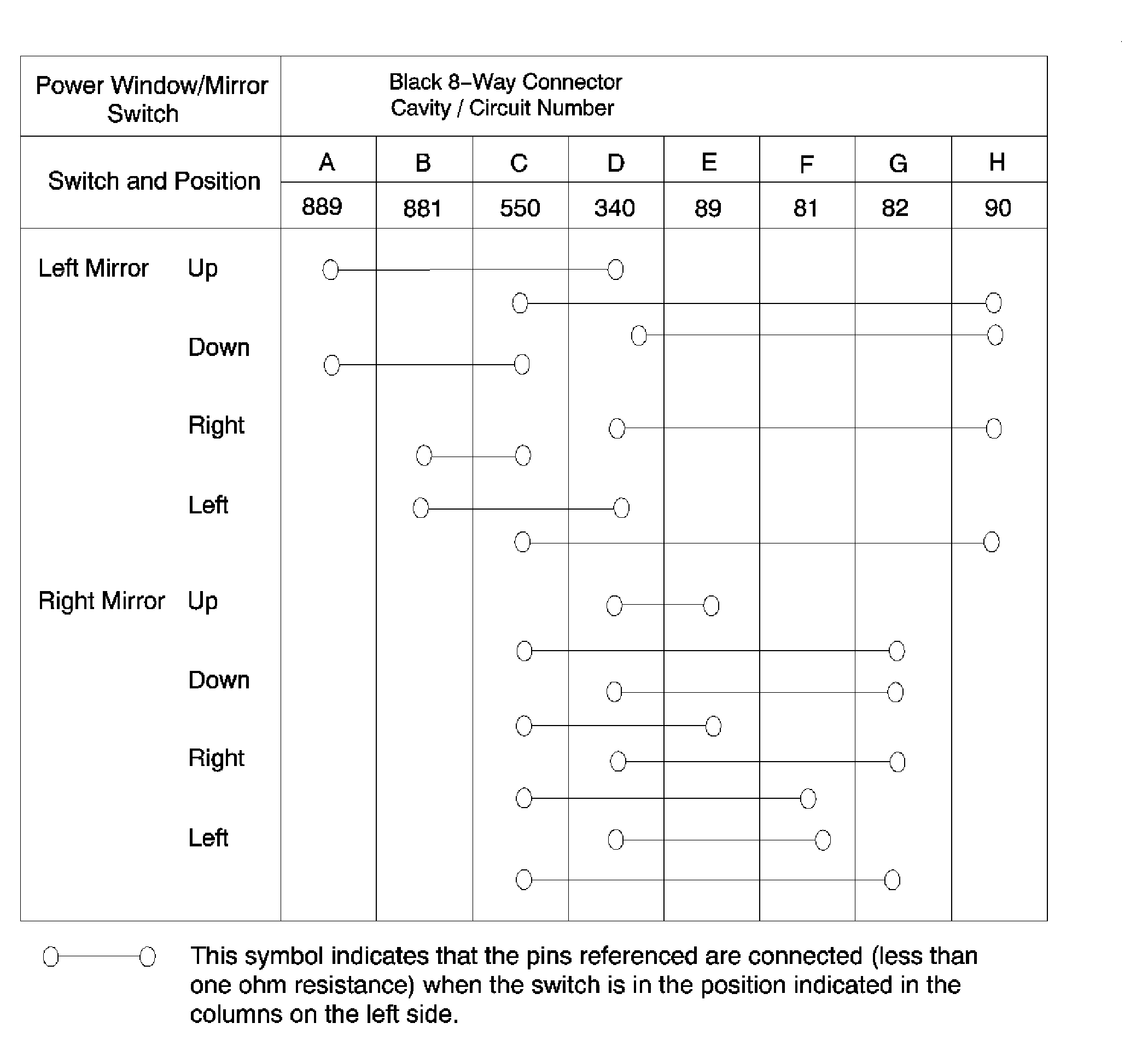

Fig 1: Power Mirror Switch Continuity Check
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
