Installation Procedure
- Install the pull cup if previously removed.
- Position the door trim panel to the door structure at the attaching hooks. Lock in the door trim panel by pushing downward on the door trim panel.
- Install the door trim fasteners at the pull cup and the rear lower corner of the door trim panel.
- On Coupe:
Install the door trim push pin rivet at the rear edge of the trim panel and install the screw fastener at the top front edge near the mirror.
- On manual window vehicles:

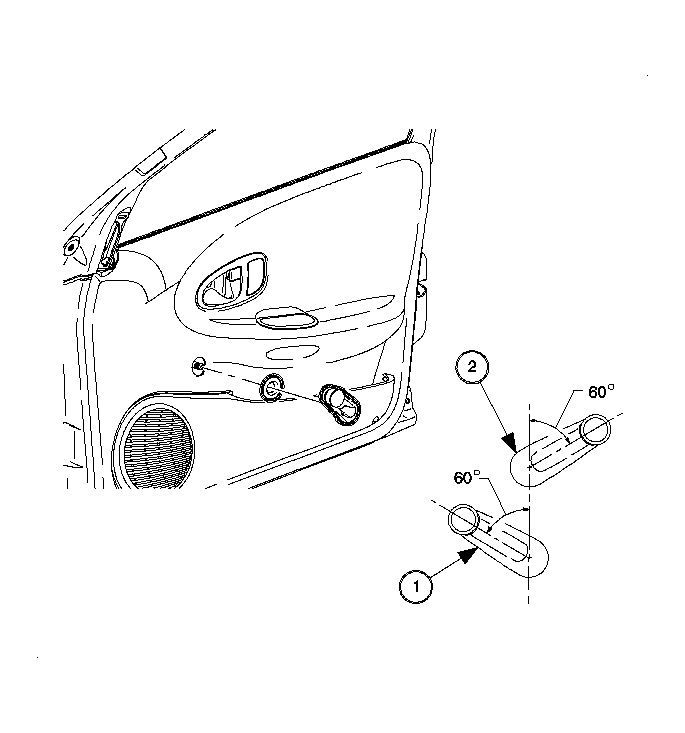

Install the manual window regulator handle clip on the handle. Install the door handle onto the vehicle with the handle pointed in a forward and slightly up position with the window closed.
- If equipped with power locks, connect the harness to the power door lock switch.
- Position the door handle assembly in the trim panel. Tip the handle outward at the top.
- Using a thin hook style tool, lift the latch and lock rods into the trim panel and slide rearward to engage the tabs.
- Install the screw in the handle.

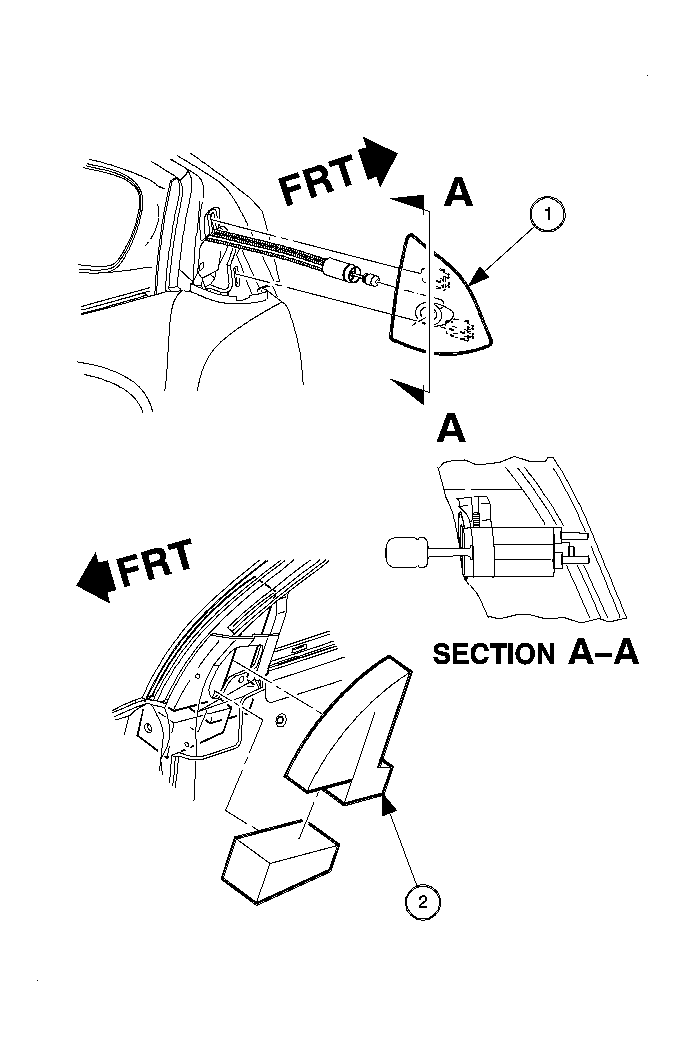

- Install the mirror trim panel.
