Installation Procedure

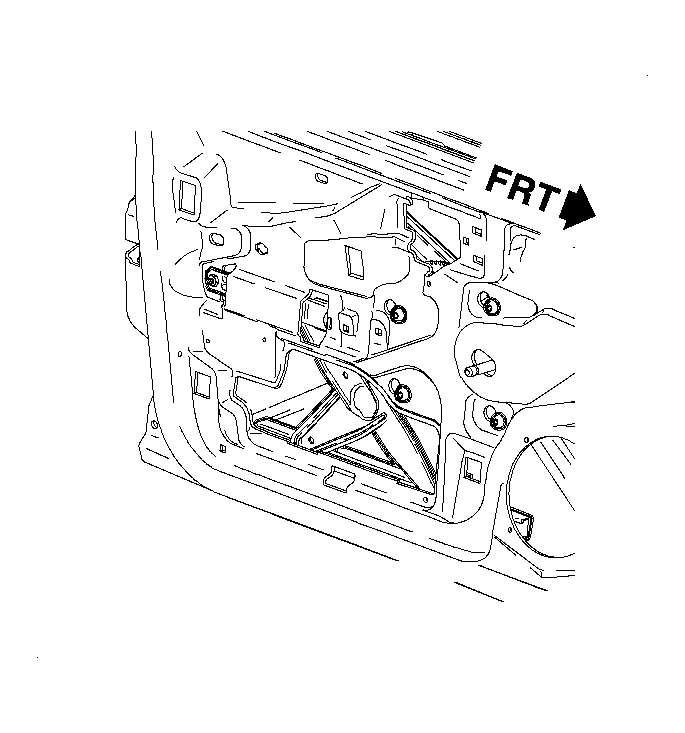

Fig 1: Regulator Attaching Bolt Locations

Courtesy of GENERAL MOTORS COMPANY

Slide the regulator assembly into the door and position the regulator with the attachment bolts.
Install the wiring to the regulator, if equipped.
Raise the regulator into position and install the bolts.
Tighten

Tighten the front window regulator bolts to 10 N.m (89 lb in).
Install the window to the regulator assembly. Slide the sash onto the window insulators (slide clips). Refer to Front Side Door Window Replacement (Sedan/Wagon) or Front Side Door Window Replacement (Coupe) .
Install the speaker assembly.
Install the water deflector.
Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
