Installation Procedure

  1. Connect the electrical connector and the seat grommet.
  2. Install the foam filler.
  3. Install the motor.
  4. Install the screws and tighten.

    Tighten

    Tighten the Power Mirror Motor Screw 3 N.m (27 lb in).

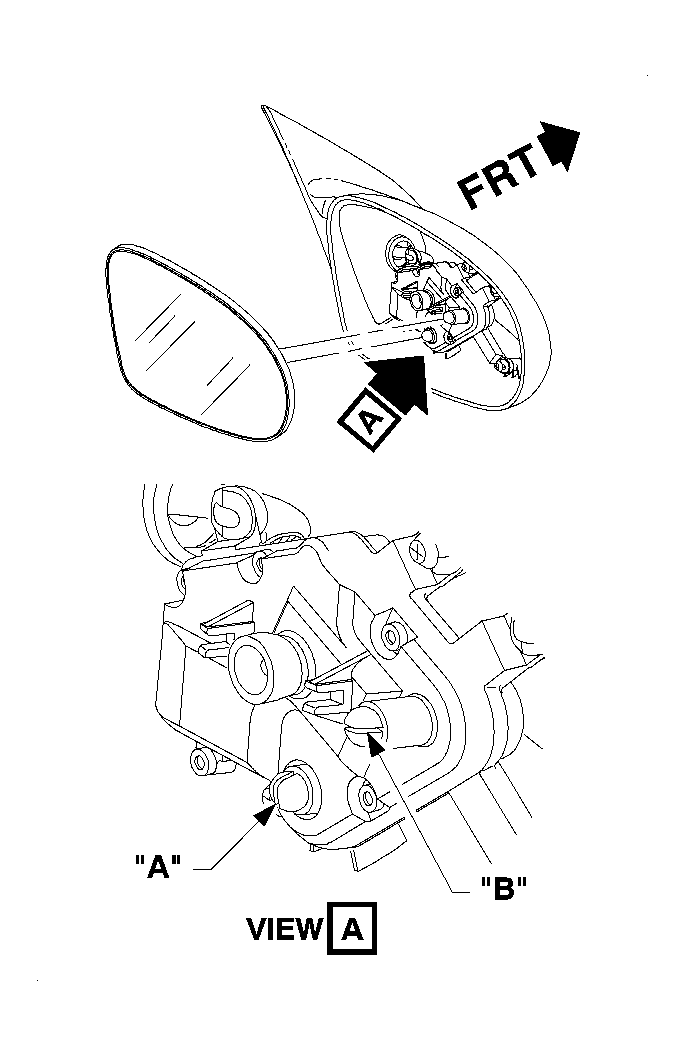

    Fig 1: Outside Rearview Mirror Motor
    GM861814Courtesy of GENERAL MOTORS COMPANY
  5. Snap the mirror glass assembly onto the motor. Refer to Outside Rearview Mirror Glass Replacement (Power) .
  6. Install the trim cover.
  7. Connect the negative battery cable.
  8. Set the clock.
