Home >> Saturn >> 1997 >> SW2 Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window System >> Repair Instructions >> Power Window/Power Mirror Switch Replacement >> Installation Procedure
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Installation Procedure

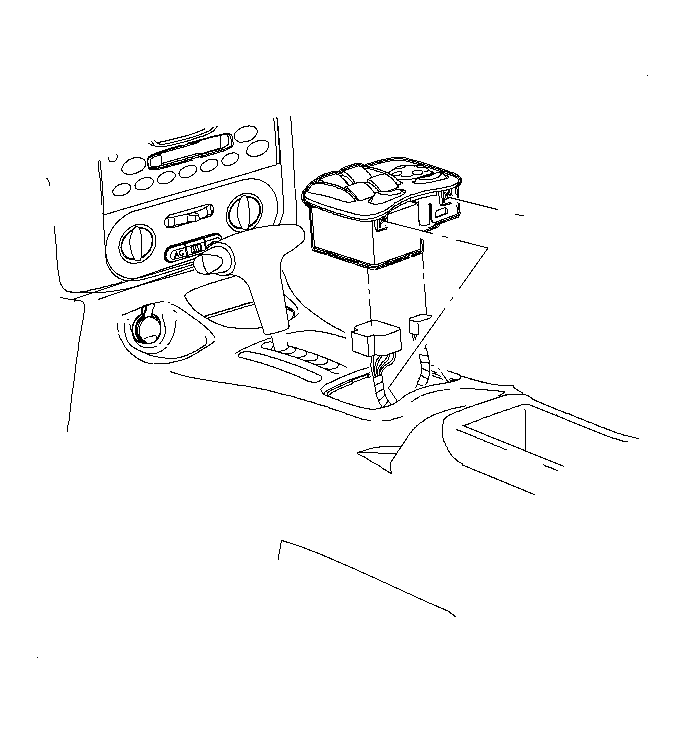

Fig 1: Power Window/Power Mirror Switch
GM866359Courtesy of GENERAL MOTORS COMPANY
  1. Connect the power window/mirror switch assembly electrical connectors.
  2. Install the power window/mirror switch assembly.
  3. Check the operation of all the switches.
