Removal Procedure

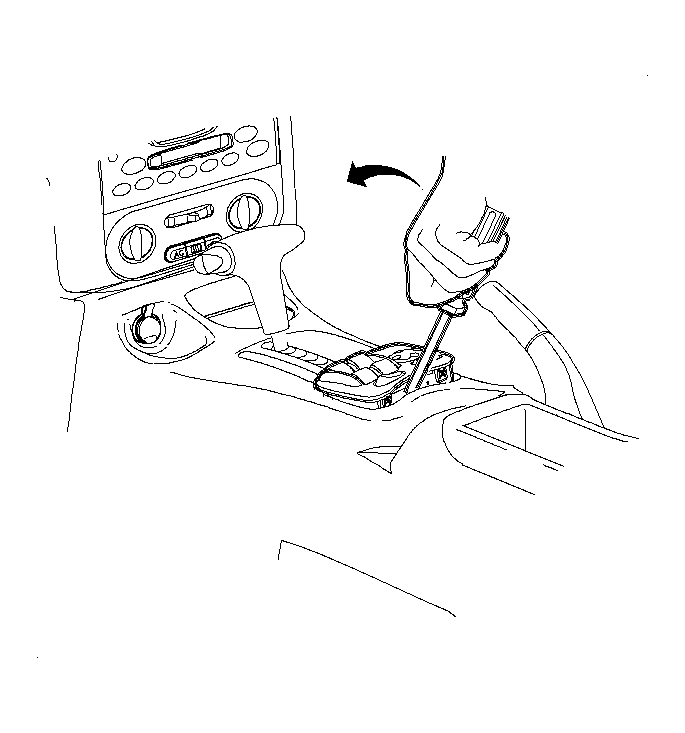

Fig 1: Lifting Power Window/Power Mirror Switch
GM866358Courtesy of GENERAL MOTORS COMPANY
  1. Exert pressure on the rear of the power window/mirror switch with hand.
  2. Using a small flat bladed screwdriver, carefully lift the switch at the rear retainer assembly tabs.
    Fig 2: Power Window/Power Mirror Switch
    GM866359Courtesy of GENERAL MOTORS COMPANY
  3. Lift the switch from console.
  4. Disconnect the electrical connectors by locating the retention tabs and disengaging the connectors.
