Removal Procedure
Courtesy of GENERAL MOTORS COMPANY

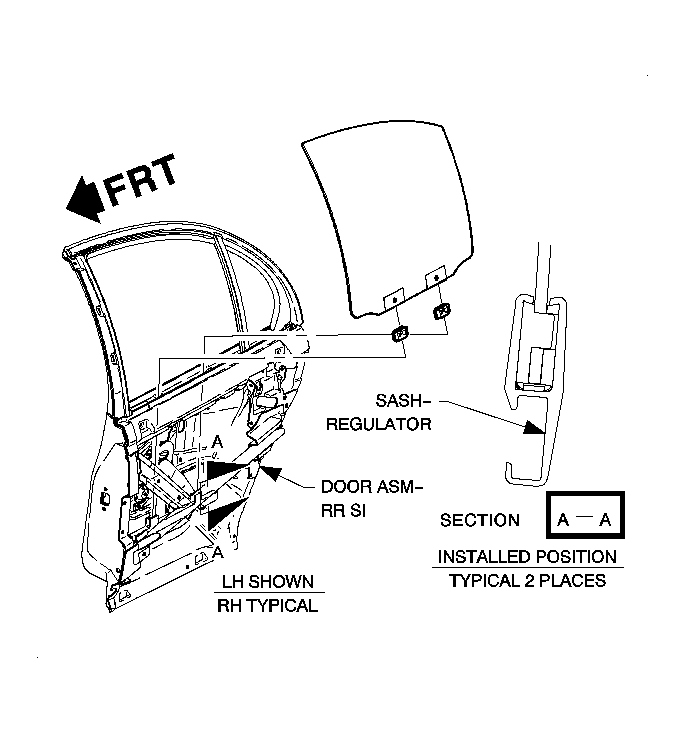

- Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Sedan/Wagon) . The outer panel is removed in the illustration to show the location.
- Remove the inner belt seal molding.
- Remove the door frame inner seal fixed glass assembly.
- Partially remove the water deflector to access the openings in the door structure.
- Lower the door window for access to the sash slide clips.
- Depress the retaining clips and slide the window insulators (slide clips) from the window.
- Rotate the window, push up, and then remove from the door.
