Code "I", No Scan Data: Notes
NOTE:

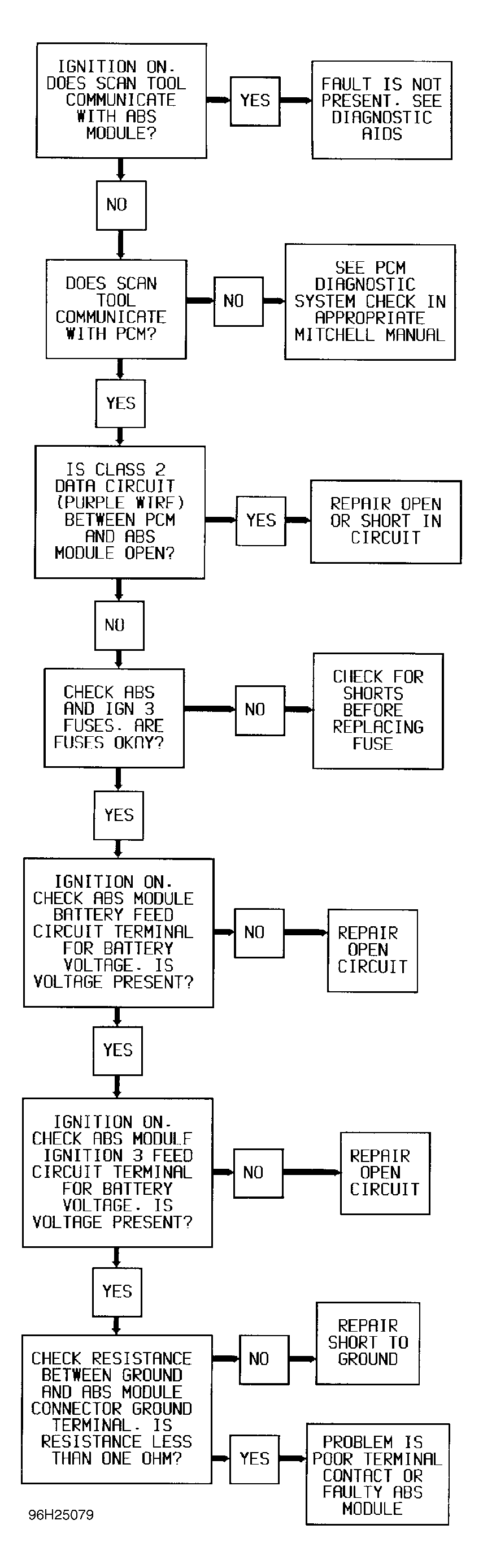

To identify circuits and terminals referenced in text and flowcharts, see WIRING DIAGRAM
.
Scan tool should be able to communicate with ABS module when ignition switch is turned to ON or RUN position. Since ABS module does not flash codes, scan tool must be used to display serial data information.
