Code 92, Brake Switch Circuit Open During Abs Stop: Notes
NOTE:

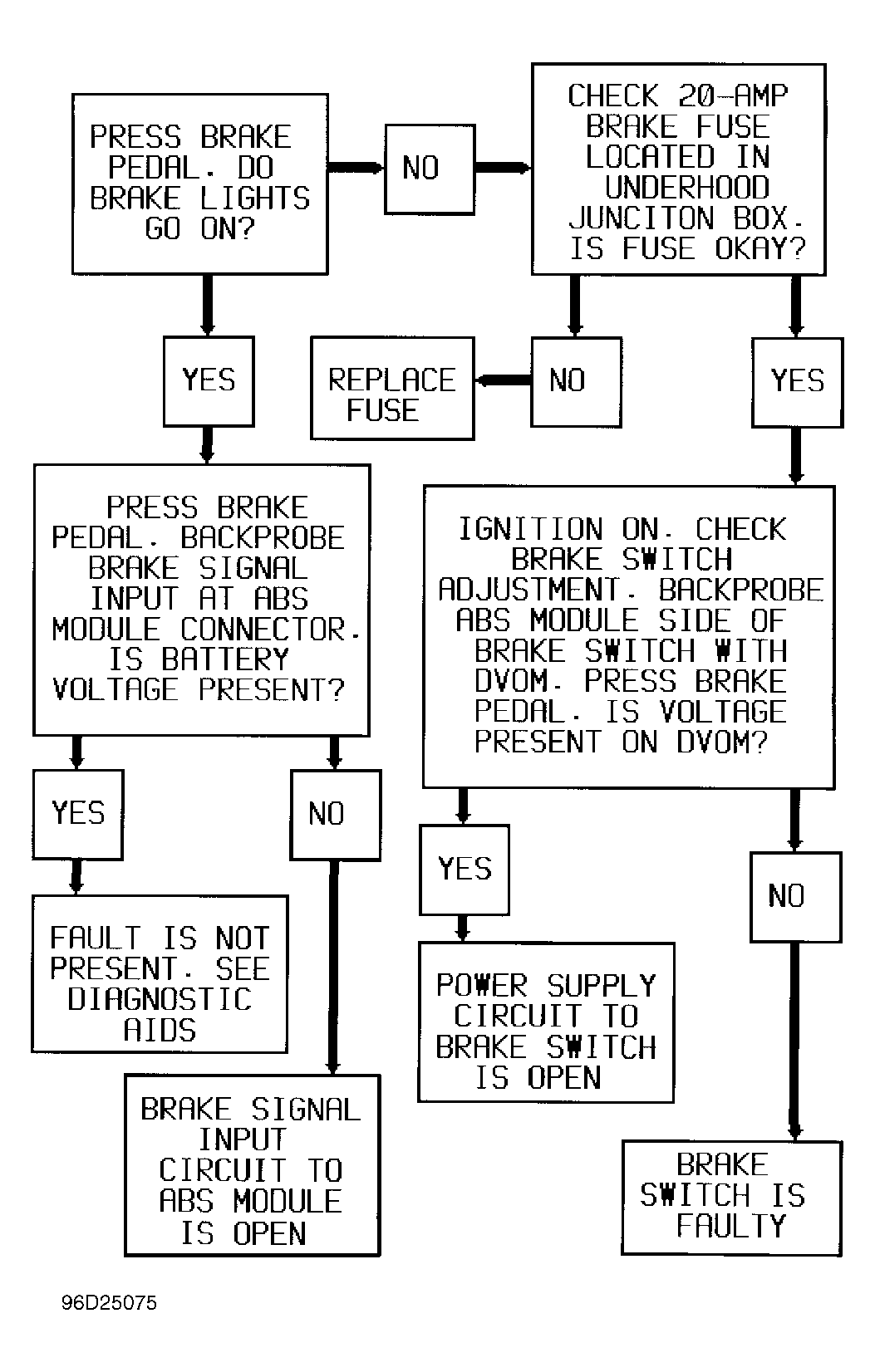

To identify circuits and terminals referenced in text and flowcharts, see WIRING DIAGRAM
.
When wheel speed sensors indicate to ABS module that vehicle is braking, ABS module should receive voltage from brake switch. If ABS module does not receive voltage, ABS operation will be disabled and ABS light will illuminate.
Code 92 will set if brake switch circuit is open during ABS stop. This code can be set only during an ABS stop.
