Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

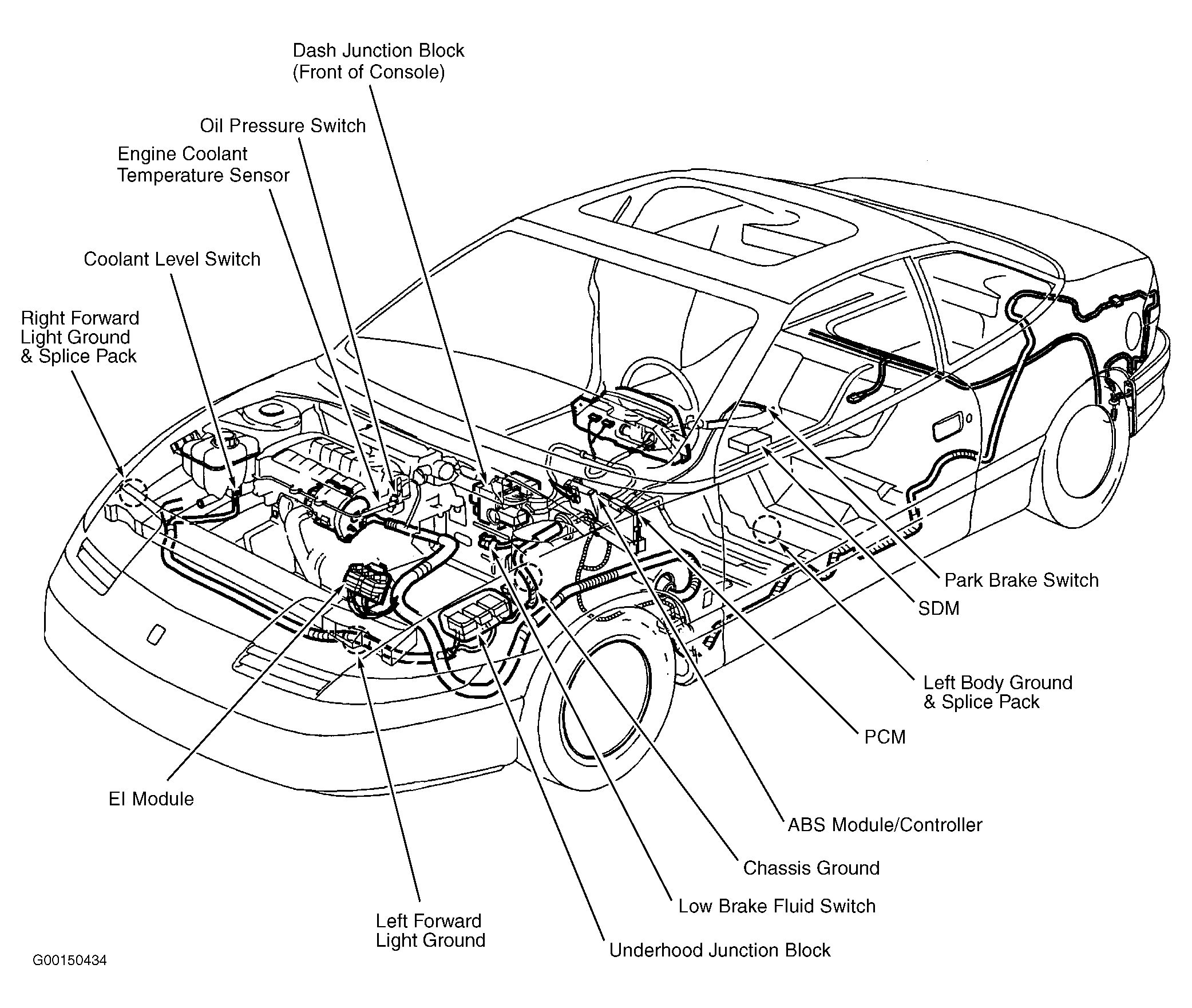

| ABS Module/Controller | Under left side of dash. See Figure . |
| Chime Module | In dash junction block. |

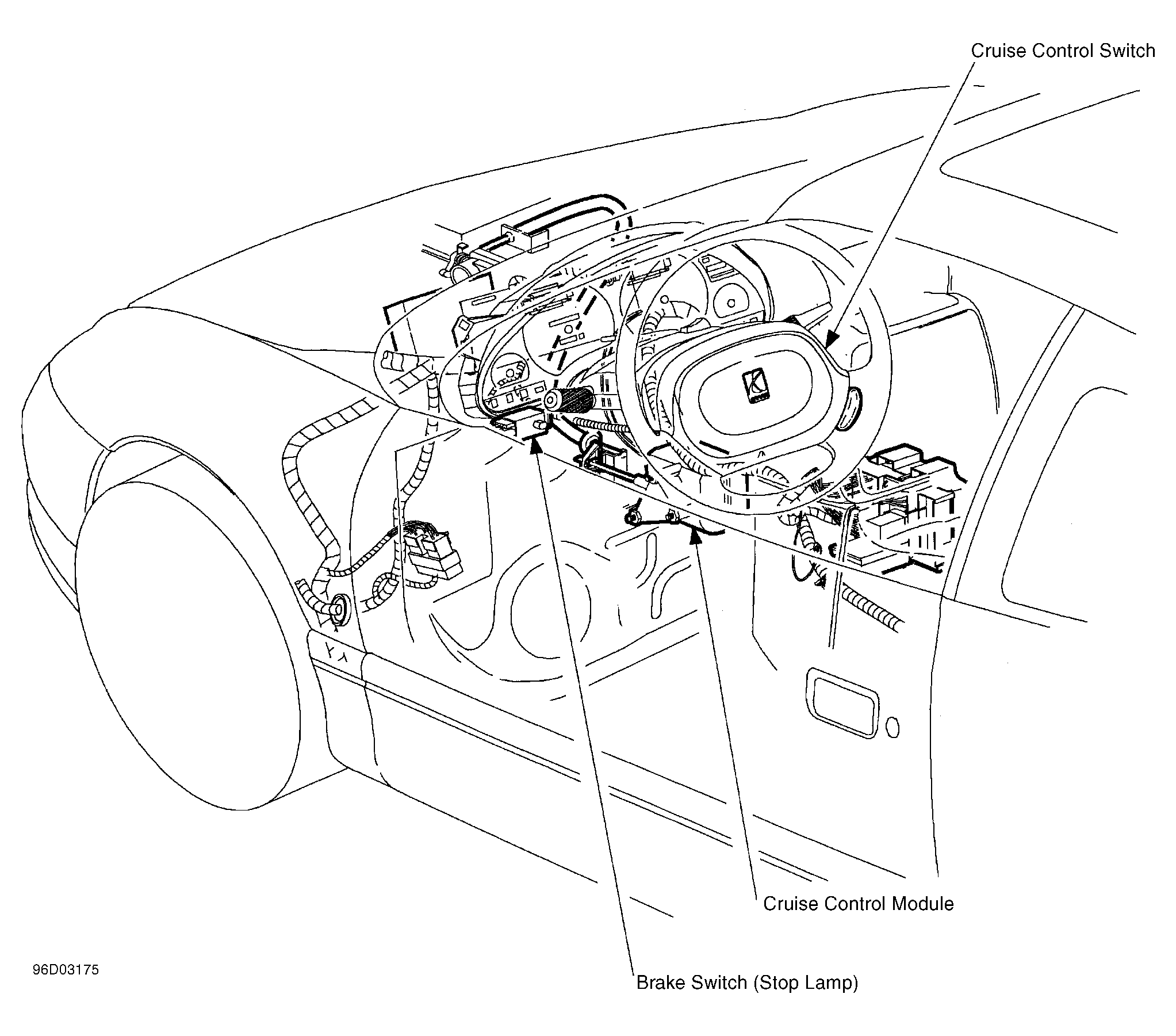

| Cruise Control Module | Under dash, on right of steering column. See Figure . |
| Electronic Ignition (EI) Module | On top left rear of engine. See Figure . |
| Flasher Module | In dash junction block. |
| Headlight Door Module | On left front of engine compartment. |
| Powertrain Control Module (PCM) | Behind left side of dash. See Figure . |
| Remote Keyless Entry (RKE) Module | Behind right rear quarter trim panel. |
| Sensing & Diagnostic Module (SDM) | Under center console. See Figure . |
