A/C High/Low Pressure Switch

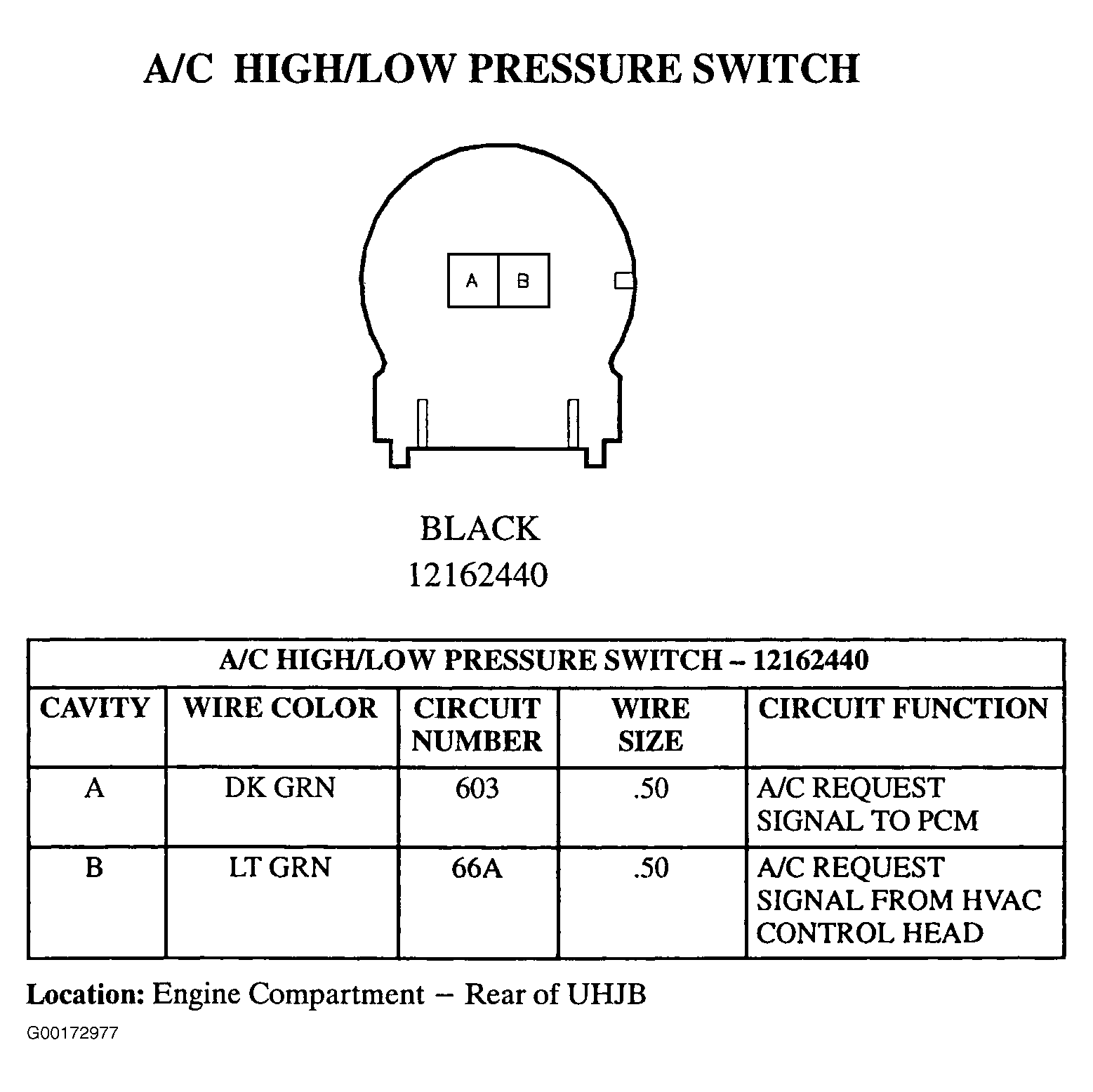

Fig 1: A/C High/Low Pressure Switch - 2-Pin Connector (12162440) - Black
G00172977Courtesy of GENERAL MOTORS CORP.
