Blower Motor Resistors

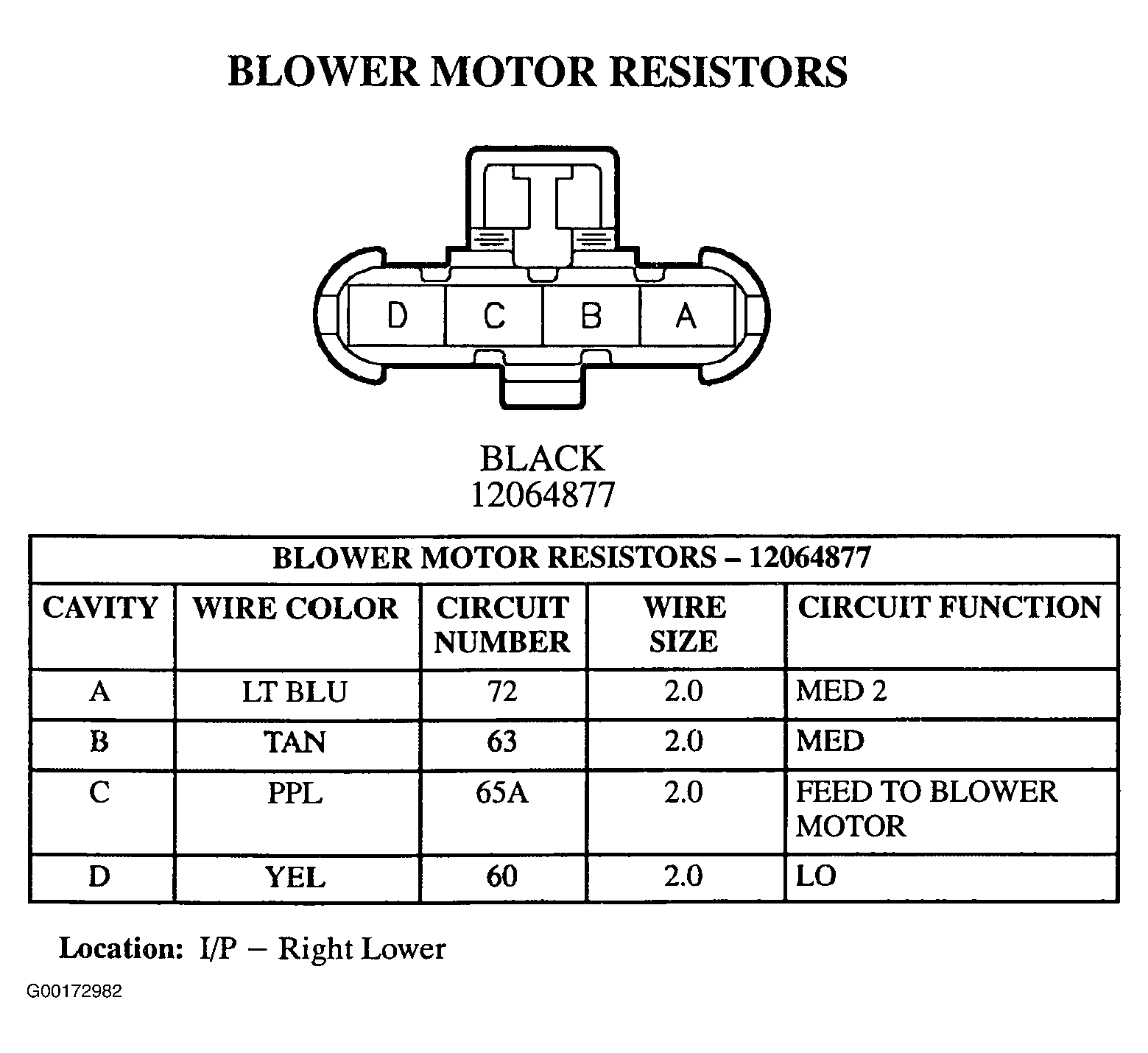

Fig 1: Blower Motor Resistors - 4-Pin Connector (12064877) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
