DECKLID Inline - To Body Harness - Sedan

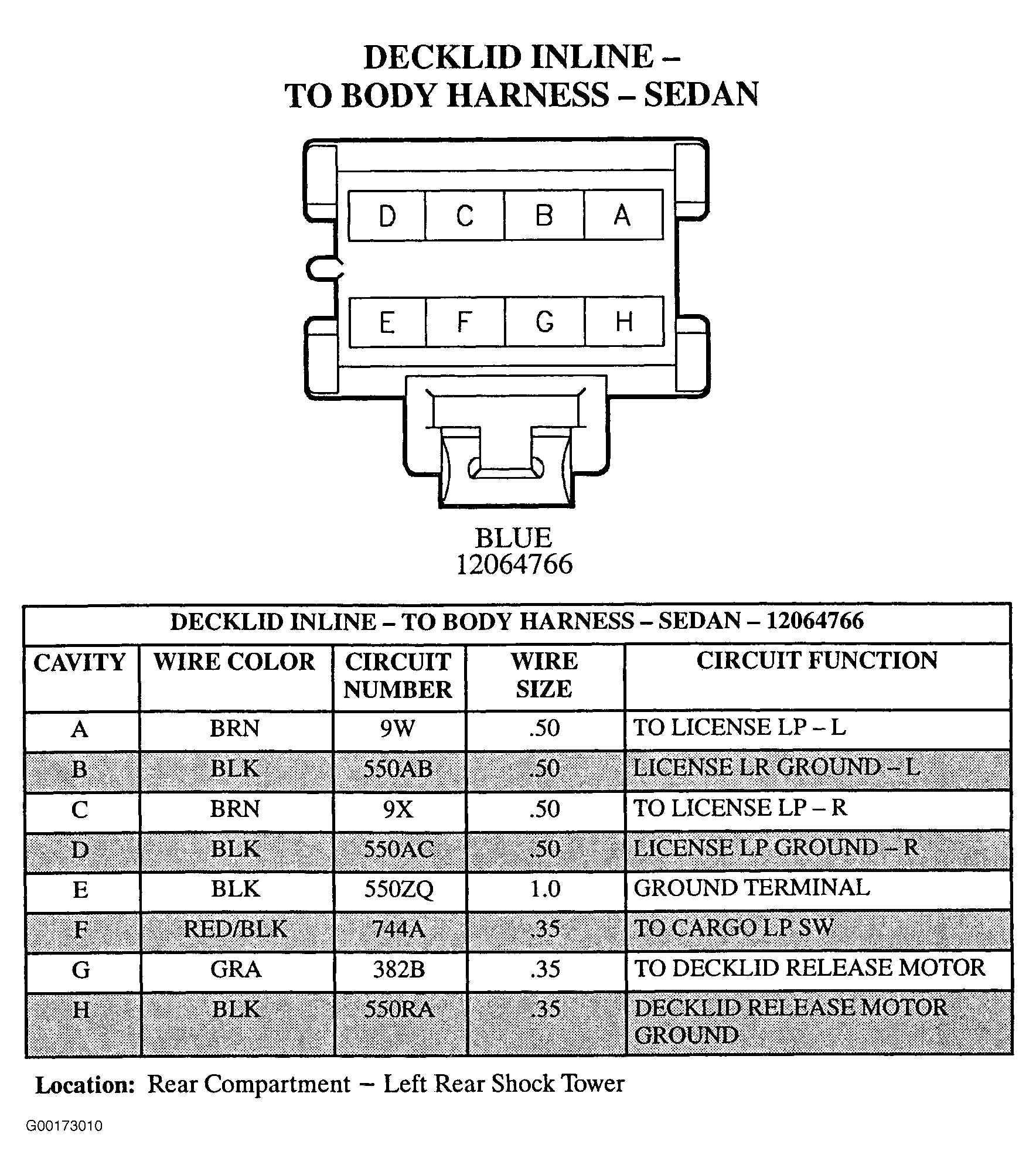

Fig 1: Decklid Inline - To Body Harness (Sedan) - 8-Pin Connector (12064766) - Blue
G00173010Courtesy of GENERAL MOTORS CORP.
