DECKLID Inline - To DECKLID Harness - Coupe

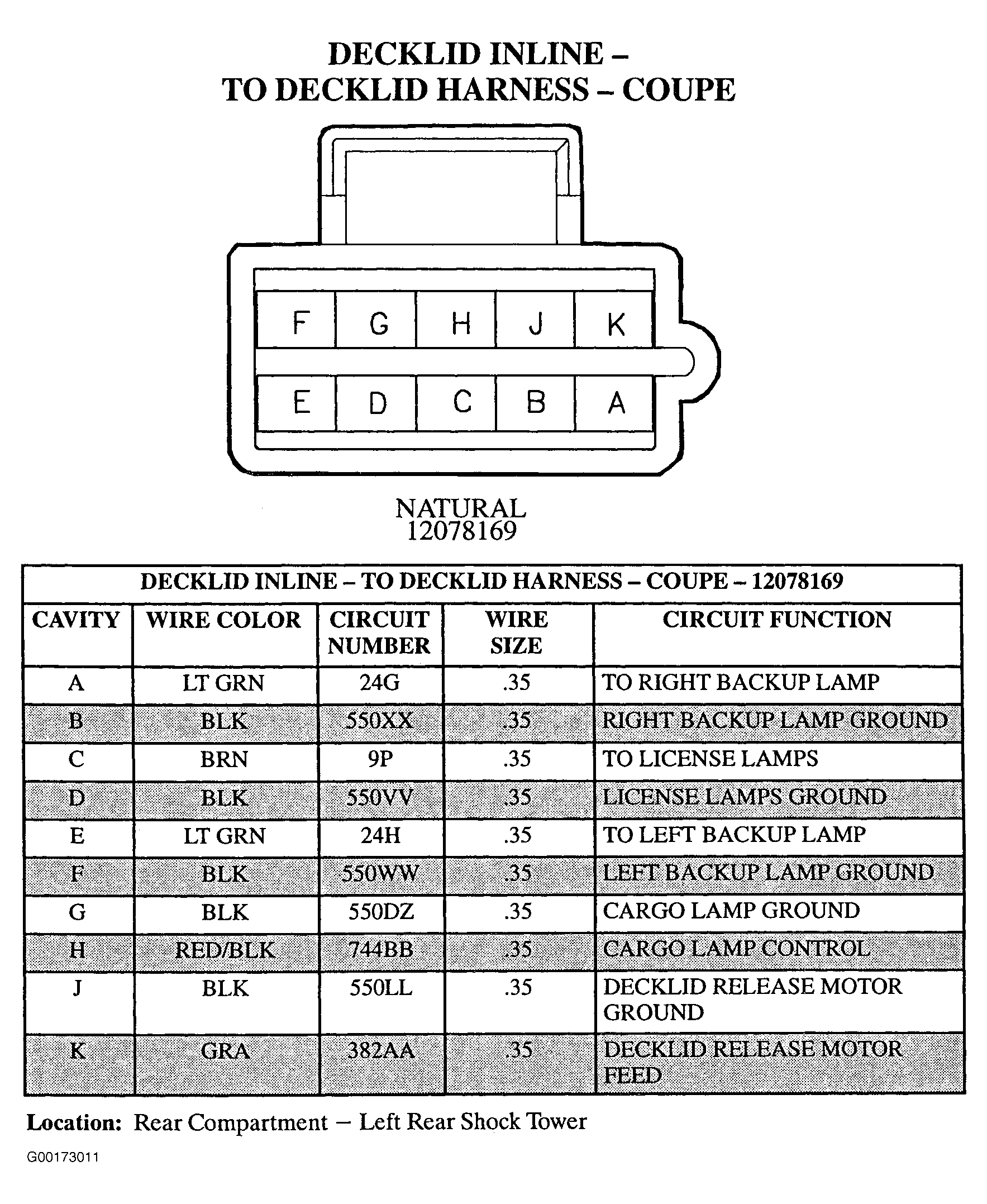

Fig 1: Decklid Inline - To Decklid Harness (Coupe) - 10-Pin Connector (12078169) - Natural
G00173011Courtesy of GENERAL MOTORS CORP.
