DECKLID Inline - To DECKLID Harness - Sedan

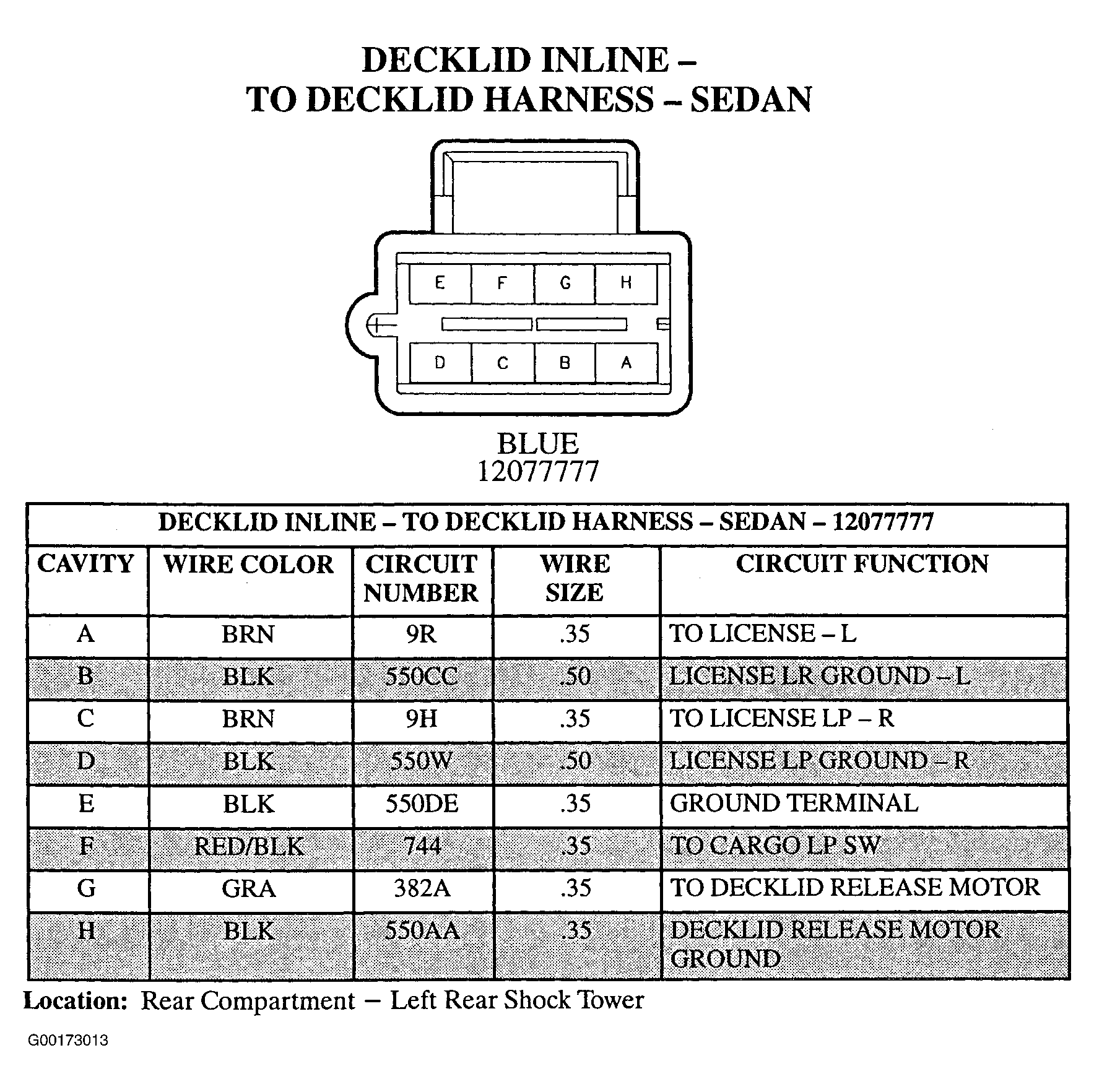

Fig 1: Decklid Inline - To Decklid Harness (Sedan) - 8-Pin Connector (12077777) - Blue
G00173013Courtesy of GENERAL MOTORS CORP.
