Door Jamb Switch

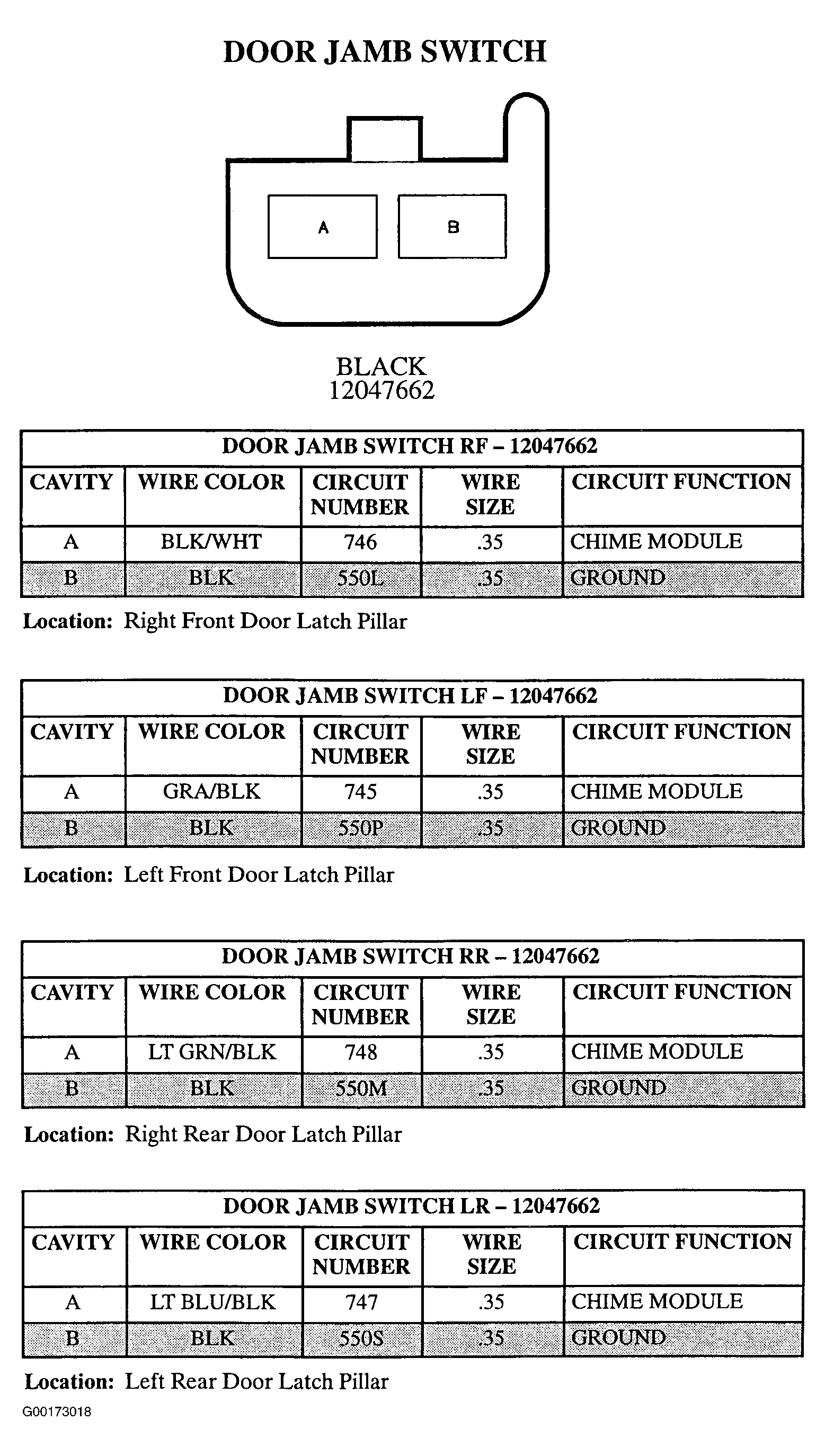

Fig 1: Door Jamb Switch - 2-Pin Connector (12047662) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
