Fuel Tank Inline (M)

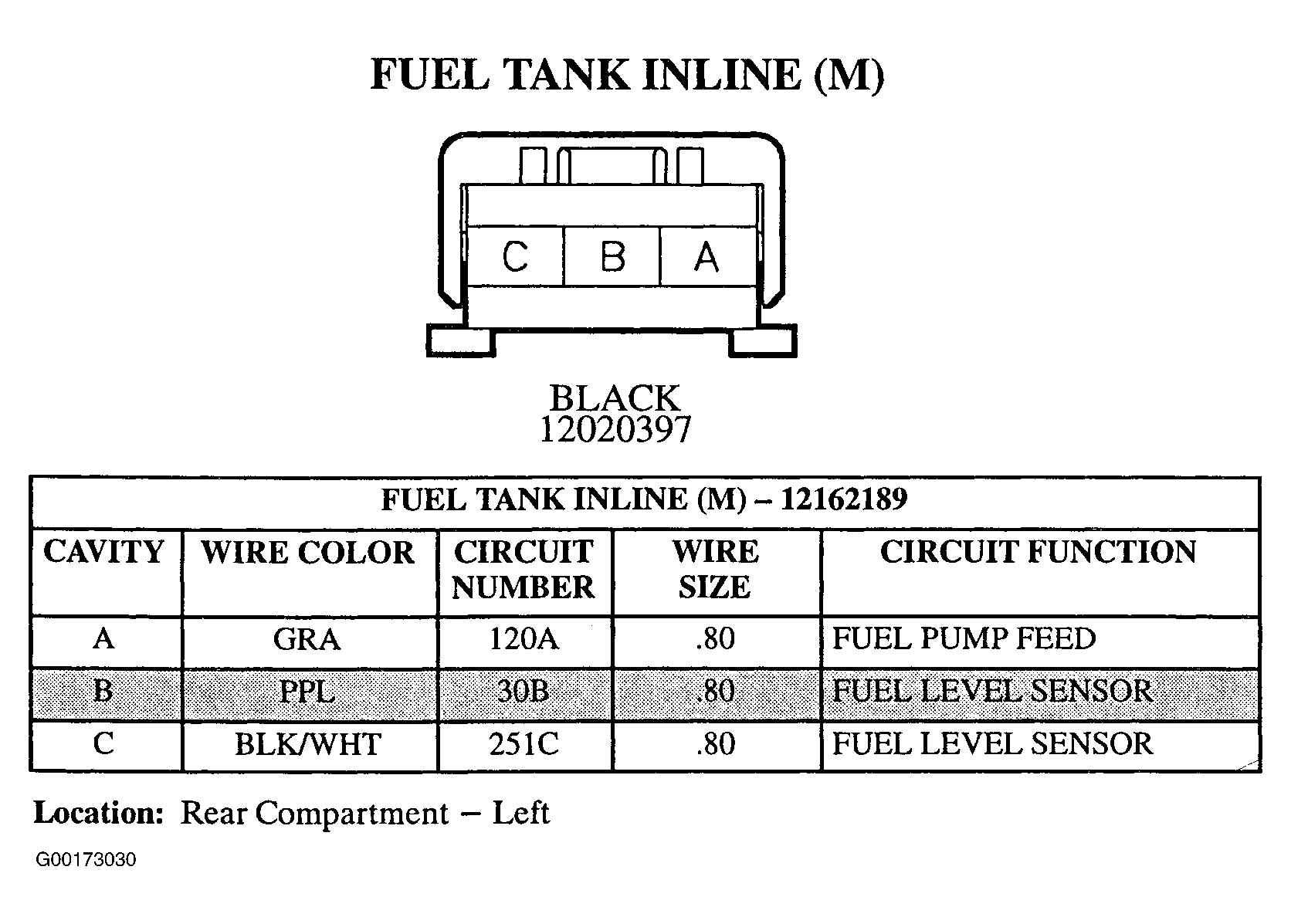

Fig 1: Fuel Tank)Inline (M) - 3-Pin Connector (12020397) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
