HVAC Control Head (Fan Switch)

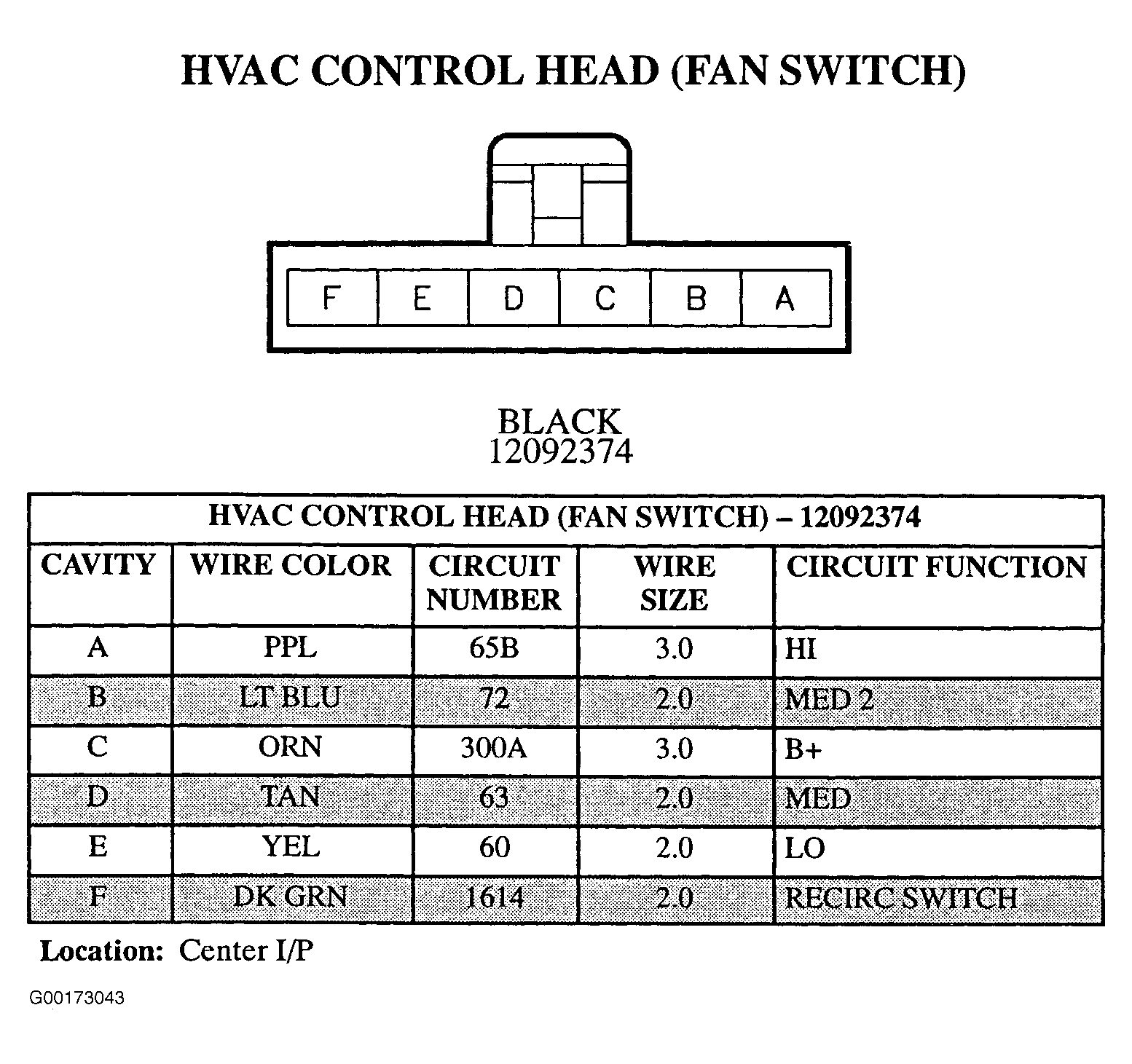

Fig 1: HVAC Control Head (Fan Switch) - 6-Pin Connector (12092374) - Black
G00173043Courtesy of GENERAL MOTORS CORP.
