Headlamp Switch

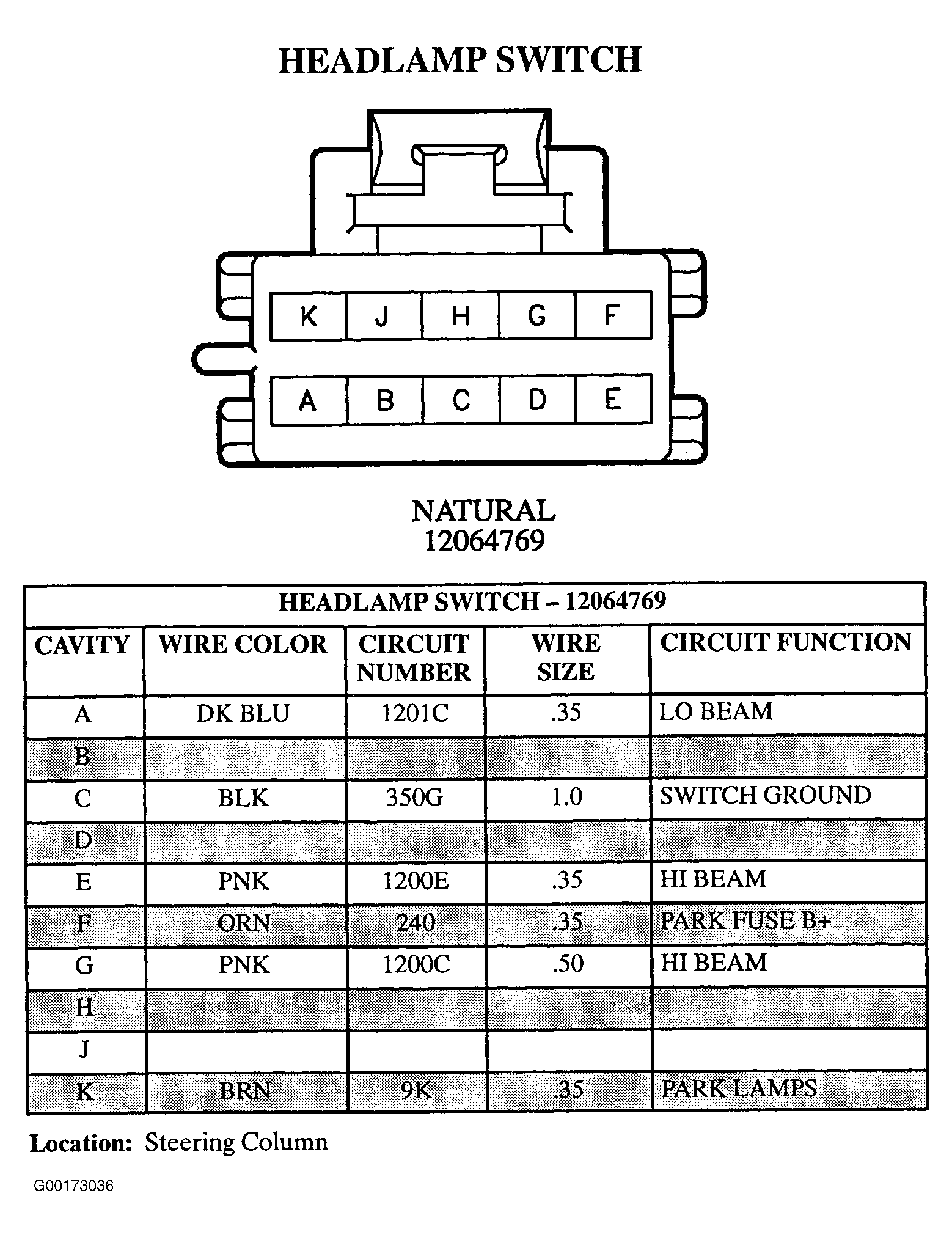

Fig 1: Headlamp Switch - 10-Pin Connector (12064769) - Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
