Instrument Panel Dimmer

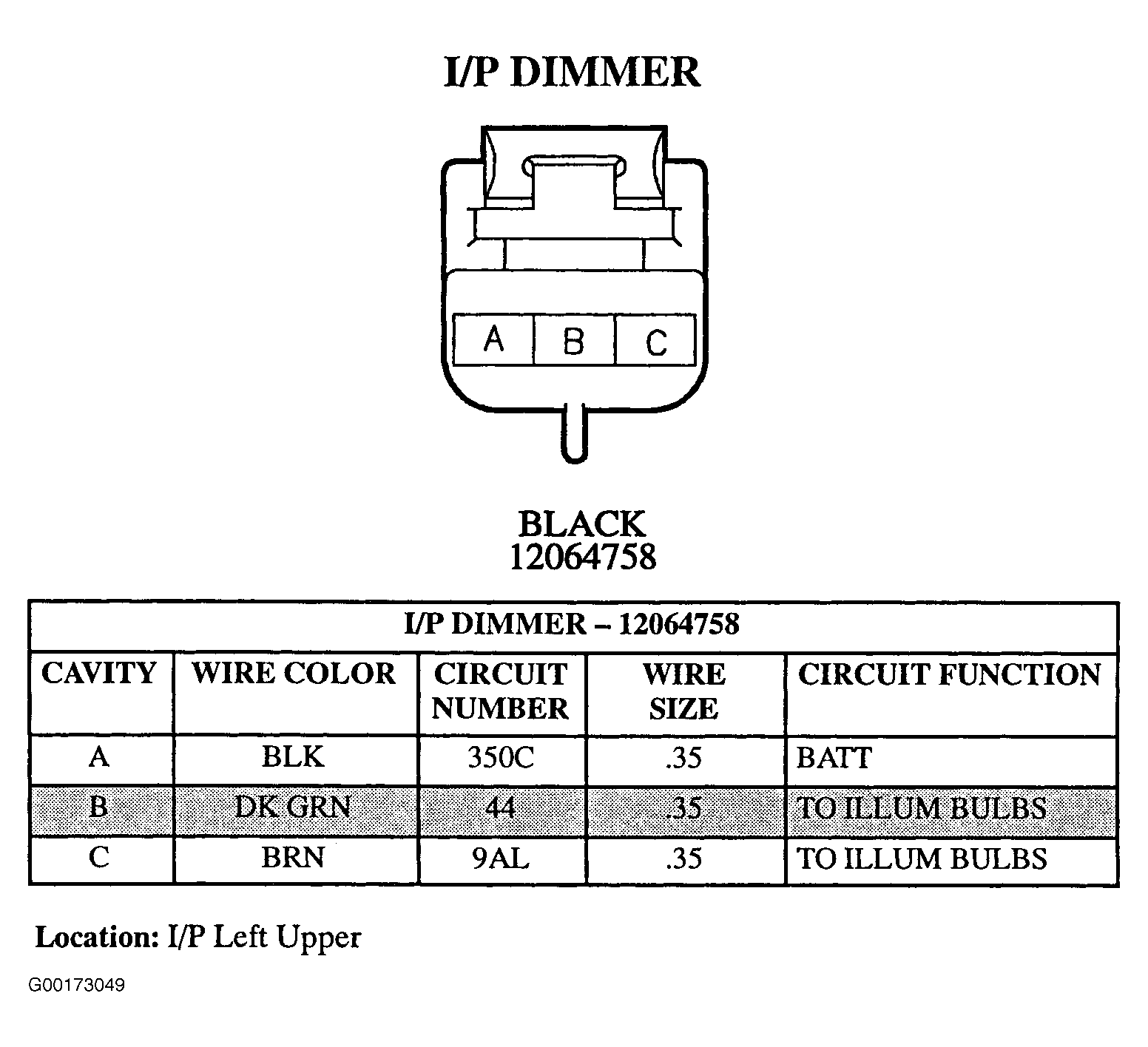

Fig 1: Instrument Panel Dimmer - 3-Pin Connector (12064758) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
